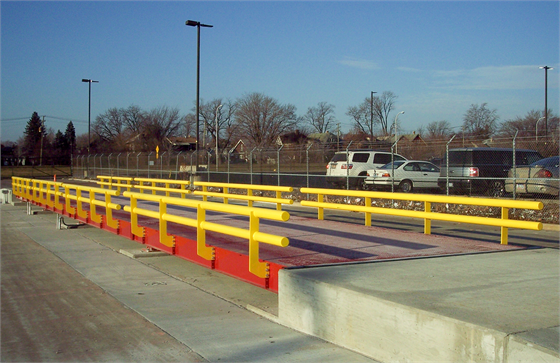

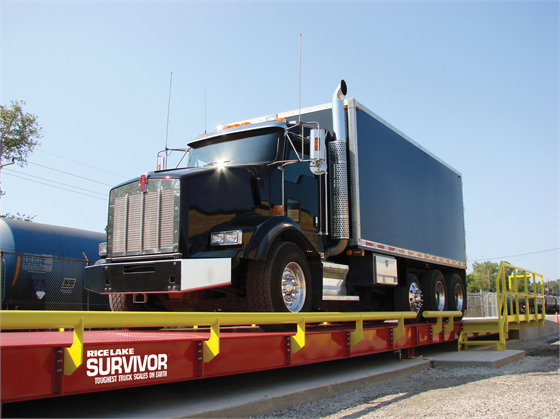

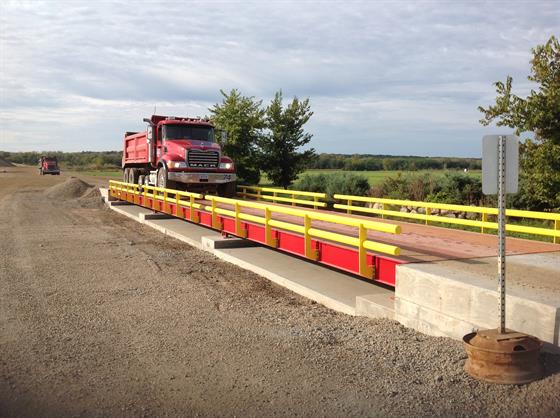

Survivor OTR Steel Deck Truck Scale

$0.00

The SURVIVOR OTR Series Steel Deck truck scale has an outstanding design that incorporates advanced engineering and production technology to achieve the highest quality in the marketplace.?For applications where steel is preferred or downtime is critical, choose the SURVIVOR OTR Steel Deck. Operational within a day, the easy-to-install SURVIVOR OTR Steel Deck sets the standard for truck scale design and performance, keeping downtime to a minimum. Tightly spaced wide-flange I-beams form the industry’s strongest weighbridge design, weighing as many as 250 trucks per day for 25 years without a trace of weighbridge fatigue.

Download product PDF
Category:

Features

  • Top access to load cells and junction box
  • 75,000lb capacity load cells and G-Force? mount assemblies
  • Junction box(es) appropriate for number of load cells utilized
  • NTEP Certified 02-003
  • 100,000lb Concentrated Load Capacity (CLC)
  • 100,000lb Dual Tandem Axle (DTA)
  • Up to 270,000lb full scale capacity
  • Three standard widths: 10ft, 11ft, and 12ft (available up to 16.5ft, NTEP Certified)

Specifications

  • Load Cells and Mount Assemblies:?75,000 lb capacity; G-Force? patented self-checking mounting system, top access to load cells
  • Full Scale Capacity:?Up to 270,000 lb
  • Concentrated Load Capacity (CLC):?100,000 lb
  • Dual Tandem Axle (DTA):?100,000 lb
  • Approvals:?NTEP Certified per H-44, Class IIIL, 02-003 Measurement Canada AM-5413
  • Warranty:?Five-year limited warranty on the weighbridge. Five-year parts warranty, including lightning protection.

Options

  • Up to 16.5ft wide
  • Fit existing foundations
  • 50lb division/400,000lb capacity
  • Custom grain dumps
  • 5lb division for
  • Livestock 10lb division for Truck/Livestock
  • 20lb division
