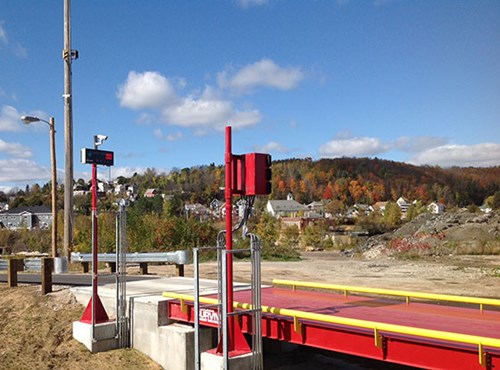

SURVIVOR® OTR-XV Extreme Duty Truck Scale

$0.00

Ultimate Strength for Vehicles Up To 400,000 Pounds

Ideal for ultra-high capacity vehicle weighing applications such as mining, coal, oil fields, forestry and construction materials, Rice Lake’s OTR-XV extreme duty vehicle scales are the toughest in the industry.

Whether you choose concrete or steel deck, both models feature wide-flange I-beam construction to minimize deflection or vertical flexing—a major factor in determining weighbridge lifespan. Many other manufacturers use lighter beams and bent plates in the middle of the bridge, or may space beams farther away from the center of the module to reduce the cost of the scale. Over time, this type of bridge can bow, causing inaccuracies in weighments, scale downtime and eventually scale failure.

The OTR-XV 11-foot-wide steel deck design features 14-inch, wide flange beams on 11.5-inch centers running longitudinally with the traffic flow beneath up to two-inch diamond check steel top plate. The concrete deck option features 14-inch main beams and 8-inch beams under a 6-inch thick slab of concrete.

Download product PDF
Category:

Features

  • Longitudinal I-beam construction
  • Integrated load cell pockets
  • Boltless, top access to load cells and junction box
  • Self-seating, P-bracket connection between modules
  • G-force mount assemblies return the scale to center without check rods or bumper bolts
  • Cables completely encased in rodent-proof conduit
  • Thorough finishing process includes cleaning of steel before and after welding, followed by either high solids urethane liquid paint or durable powder paint

Options

  • 20 lb division
  • 50 lb division/300, 000 lb or 400,000 lb capacity
  • Schedule 40 guiderails
  • Schedule 80 guiderails
  • Manhole
  • Slotted manhole
  • Grain dump
  • Dolly down plate
  • End cleanout
  • Stainless steel load cells
  • Tapered links and radius blocks
  • Stainless steel suspension hardware
  • Galvanized weighbridge and suspension hardware
  • Corrosion-resistant coating
  • 3/8-inch runners
  • Side deflector plates
  • Catwalk
  • Landing with stairs
  • iQUBE2® digital diagnostic junction box bundles

Specifications

Load Cells:
Rice Lake RL75058-LP alloy steel,
Double-ended beam
125,000 lb capacity

Mount Assemblies:
G-force self-checking mounting system

Junction Box:
JB8SPT Tuffseal® polycarbonate NEMA Type 4X enclosure with overlapping solid cover, stainless steel screws

 Platform Size:
10 to 117 ft length
10 ft, 11 ft, 12 ft or 14 ft width

Scale Profile:
16.5 in or 18.75 in
(custom profiles available)

Deck Thickness:
5/16 in
(other sizes available)

Full Scale Capacity:
Up to 400,000 lb

 Concentrated Load Capacity (CLC):
140,000 lb

Dual Tandem Axle (DTA):
140,000 lb

Warranty:
Weighbridge: 5-year or 12-year
Parts: 5-year or 12-year

Approvals:
NTEP CC 02-003, Class IIIL
Measurement Canada AM-5598
