Consisting of three different weigh module designs, the Paramounts system offers superior accuracy, even in applications with extreme expansion, contraction and vibration. The fixed-pin module acts as the vessel’s primary reference point, enabling rotation. A single side-stop module is then paired with the fixed-pin module to permit mechanical expansion and contraction in one direction. The vessel then becomes a high-accuracy weighing system with the addition of one to six free-sliding modules. This system offers the free motion necessary to eliminate unwanted mechanical side loads, as well as the strength needed to keep the vessel in check. This gives the Paramounts system its industry-leading reputation for exceptional accuracy in unfriendly environments. Integral jacking/shipping bolts enhance safety by preventing accidental lift-off, facilitating quick field removal of load cells and eliminating load cell damage during transportation. Matched outputs and field-replaceable cable simplify installation and enhance serviceability. The Paramounts system represents the ultimate combination of convenience, accuracy and control.

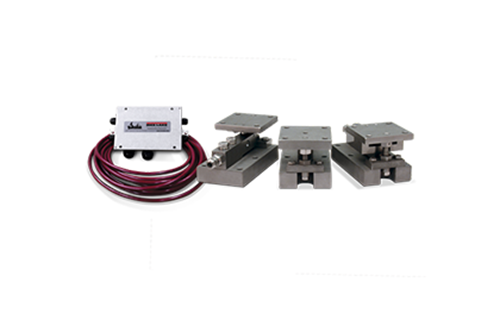

One fixed-pin module, one side-stop module, and one or two free-sliding assemblies. Each module is complete with a Flintec SB4 stainless steel hermetically sealed load cell.
One JB4SS NEMA Type 4X stainless steel signal trim junction box
25 ft of our hostile environment EL147HE SURVIVOR® load cell cable
Standard Features
All stainless steel construction
Bolt-in-place design; module bolts directly to tank leg without requiring additional load buttons or mounting plates
Load cell outputs are mV/V/ohm calibrated to minimize maintenance costs
Unique design allows for thermal expansion/contraction
Low-profile, self-checking design
Jacking screw allows empty vessel to be lifted clear of load cell for maintenance
Unique patented blind load hole technology minimizes unwanted side and eccentric loading
Vessel is free to slide laterally on PTFE-coated surfaces
