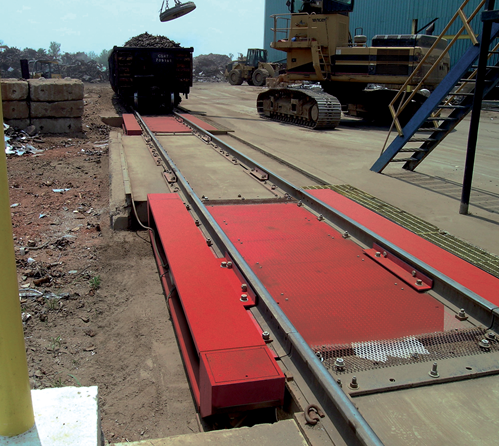

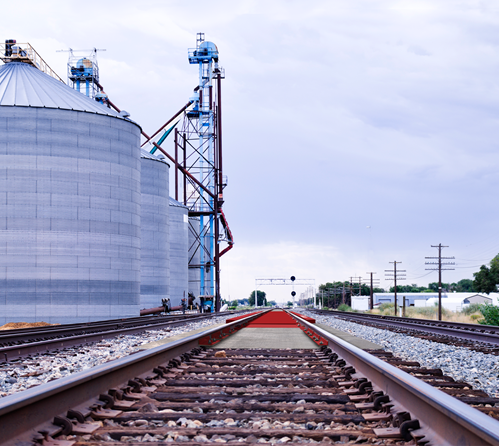

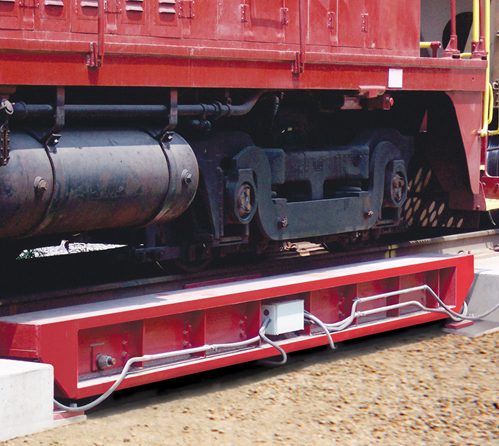

SURVIVOR® PL Low Profile Rail Scale

$0.00

Low Profile, Modular Installation Rail Scale

The SURVIVOR PL rail scale’s low-profile design eliminates the need for a pit, saving time and costs on construction and pit maintenance. A highly-accurate, full- or double-draft weighing solution for Legal for Trade rail applications, the SURVIVOR PL Class IIIL rail scale meets NIST, AAR and AREMA requirements. The SURVIVOR PL is manufactured with more steel content than competitive models and engineered to stand alone as the industry’s highest performing, longest-lasting rail scale.

Flexible Configuration Options

Numerous scale platform lengths allow the SURVIOR PL railroad scale to offer a superior range of scale configurations. These configuration options make rail car weighing adaptable to different car sizes, saving space and costs associated with extra materials.

Download product PDF
Category:

Features

  • 100,000 lb capacity compression load cells
  • Standard platforms sizes: 12 ft 6 in, 15 ft, 18 ft and 25 ft
  • 7 ft 8 in platform width
  • 18.5 in profile from top of pier to base of rail
  • 24.5 in profile from top of pier to top of rail
  • Surge protection kit
  • Built-in conduit runs
  • 1/4 in bolted checkered steel top plate
  • Designed for 115 lb or 132 lb rail (other sizes available)
  • Configurations: Single, single/single, single/double, double and double/double

Additional Options

  • Custom platform sizes and configurations
  • Concrete approach
  • T-beam approach hardware
  • Rail plate approach hardware
  • Intermediate section hardware
  • Flush deck design

Specifications

Load Cells:
100,000 lb capacity compression load cells

Gross Capacity:
350,000 lb

 Sectional Capacity:
170,000 lb

Warranty:
Weighbridge: Five-year limited
Electronic components: Two-year

 Approvals:
NTEP CC 02-087, Class IIIL Measurement Canada AM-5850 Meets Cooper E-80 design specifications; Meets AAR and AREMA specifications

Options

Consult Consult factory for rail scale products
