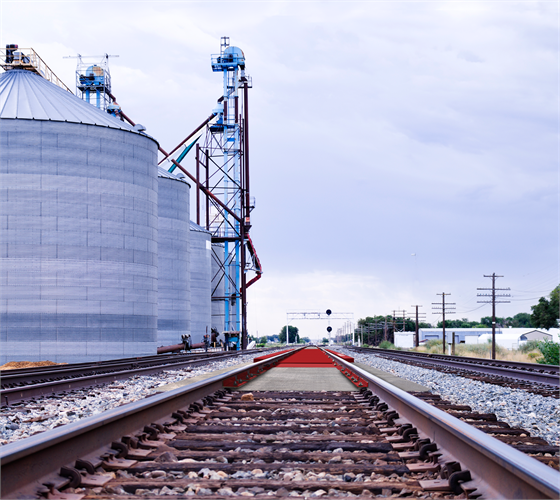

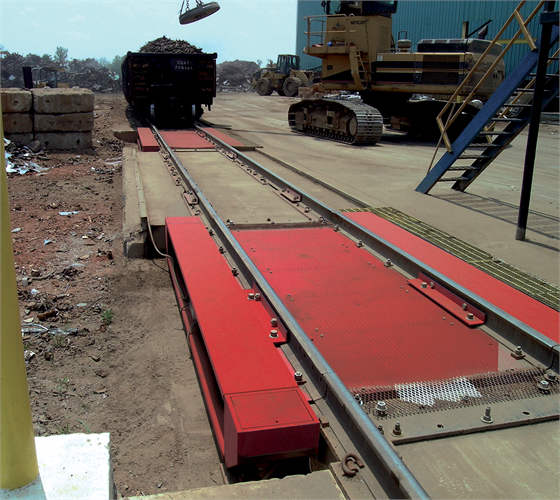

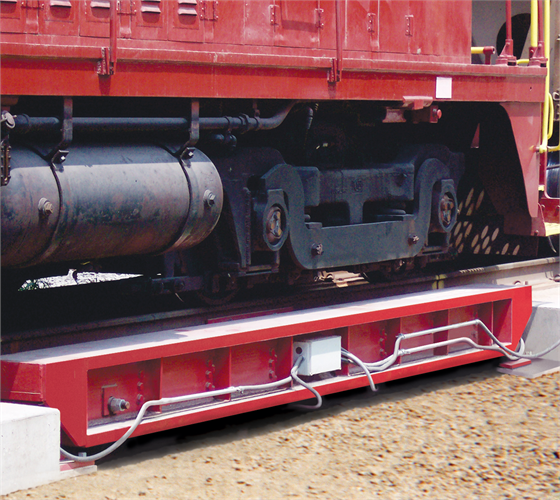

SURVIVOR PL Rail Scale

$0.00

  • 100,000 lb capacity compression load cells
  • Standard platforms sizes: 12 ft 6 in; 15 ft; 18 ft; 25 ft
  • 7 ft 8 in platform width
  • 18.5 in profile from top of pier to base of rail
  • 24.5 in profile from top of pier to top of rail
  • Surge protection kit
  • Built-in conduit runs
  • 1/4 in bolted checkered steel top plate
  • Designed for 115 lb or 132 lb rail (other sizes available)
  • Configurations: Single, Single/Single, Single/Double, Double, Double/Double
Download product PDF
Category:

Features

? 100,000lb capacity compression load cells
? Standard platforms sizes: 12ft 6in; 15ft; 18ft; 25ft
? 7ft 8in platform width
? 18.5in profile from top of pier to base of rail
? 24.5in profile from top of pier to top of rail
? Surge protection kit
? Built-in conduit runs
? 1/4in bolted checkered steel top plate
? Designed for 115lb or 132 lb rail (other sizes available)
? Configurations: Single, Single/Single, Single/Double, Double, Double/Double

Specifications

Load Cells:
100,000 lb capacity compression load cells
Gross Capacity:
Up to 350,000 lb
Sectional Capacity:
170,000 lb
Approvals:
NTEP CC 02-087, Class IIIL
Measurement Canada AM-5850
Meets Cooper E-80 design specifications
Meets AAR and AREMA specifications
Warranty:
Five-year limited warranty on the weighbridge
Two-year electronic components warranty

Options

  • Custom platform sizes and configurations
  • Concrete approach
  • T-beam approach hardware
  • Rail plate approach hardware
  • Intermediate section hardware
  • Flush deck design

Models

Model? ? ? ? ?Configuration Platform Size? ? ? ? ? ?Capacity
PL-12? ? ? ? ? ? ?Single 12 ft, 6 in? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? 85 tons
PL-15? ? ? ? ? ? ?Single 15 ft? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?85 tons
PL-18? ? ? ? ? ? Single 18 ft? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?85 tons
PL-25? ? ? ? ? ?Double 25 ft? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? 175 tons
PL-12-12? ? ? Single/Single 12 ft, 6 in + 12 ft, 6 in? ? ? ? ?170 tons
PL-12-15? ? ? Single/Single 12 ft, 6 in + 15 ft? ? ? ? ? ? ? ? ? 170 tons
PL-12-18? ? ? Single/Single 12 ft, 6 in + 18 ft? ? ? ? ? ? ? ? ? 170 tons
PL-12-25? ? ? Single/Double 12 ft, 6 in + 25 ft? ? ? ? ? ? ? ? 175 tons
PL-15-15? ? ? Single/Single 15 ft + 15 ft? ? ? ? ? ? ? ? ? ? ? ? ? ? 170 tons
PL-15-18? ? ? Single/Single 15 ft + 18 ft? ? ? ? ? ? ? ? ? ? ? ? ? ? 170 tons
PL-15-25? ? ?Single/Double 15 ft + 25 ft? ? ? ? ? ? ? ? ? ? ? ? ? ?175 tons
PL-18-18 Single/Single 18 ft + 18 ft? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?170 tons
PL-18-25 Single/Double 18 ft + 25 ft? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?175 tons
PL-25-25 Double/Double 25 ft + 25 ft? ? ? ? ? ? ? ? ? ? ? ? ? ? ?175 tons
