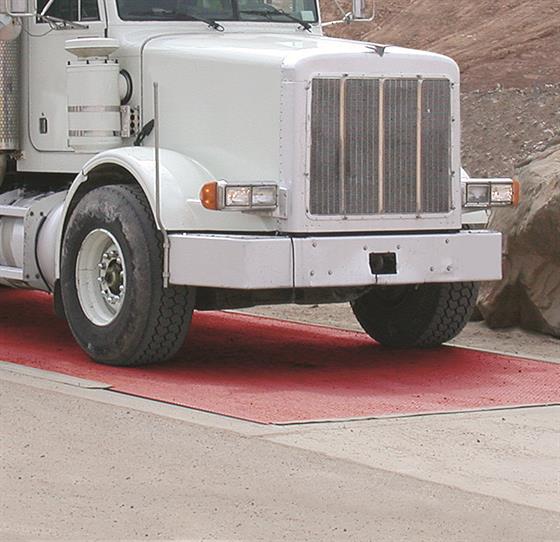

Survivor PT Series Truck Scale

$0.00

The SURVIVOR PT Series truck scale is available in many standard sizes to satisfy varying requirements. We understand that pit-type installations often involve replacing an existing mechanical or electronic cale.
The PT easily fits into many existing pit-type foundations. Standard widths for the NTEP Certified PT Series concrete or steel deck models range from 10 to 14 feet. Our staff of engineers specializes in custom-built models, including multi-platform scales that conform to the exact requirements of your existing pit. This results in a quicker installation and less disruption to your business.

Download product PDF
Category:

Features

  • 75,000lb capacity load cells and pre-assembled G-force? mounts
  • Junction box(es) appropriate for number of load cells utilized
  • NTEP Certified 98-011
  • 120,000lb Concentrated Load Capacity (CLC)
  • 120,000lb Dual Tandem Axle (DTA)
  • Up to 270,000lb full scale capacity
  • 6in reinforced concrete deck
  • One 2ft x 2ft square manhole opening
  • Up to 42ft section span
  • Three standard widths: 10ft, 11ft and 12ft (available up to 14ft, NTEP Certified)

Specifications

  • Load Cells and Mount Assemblies: 75,000 lb capacity; G-Force? patented self-checking mounting system
  • Full Scale Capacity :Up to 270,000 lb
  • Concentrated Load Capacity (CLC): 120,000 lb
  • Dual Tandem Axle (DTA):120,000 lb
  • Approvals: NTEP Certified per H-44, Class IIIL, 98-011 Measurement Canada AM-5413
  • Warrantys:</strong Five- year or Twelve-yearr limited warranty on the weighbridge. Five-year parts warranty, including lightning protection

Options

  • 14ft wide
  • 18in main beams (for increased pit clearance)
  • Steel deck
  • Fit existing foundations
  • Custom grain dumps
