Maximizing a Weigh Module’s Level of Performance

The SURVIVOR RL1600 HE mounting weigh module kit utilizes several Rice Lake Weighing Systems components to provide an unmatched level of performance in tank and hopper weighing applications. The RL1600 HE kit is ideally suited for indoor and outdoor process control operations in the medium-capacity ranges. Each module incorporates self-checking capabilities for thermal expansion and contraction.

Applications:

  • Medium-capacity tanks, bins and hoppers
  • Bulk material management
  • Ingredient batching, mixing and blending
Download product PDF
Categories: ,

Features

SURVIVOR® RL1600 HE Series Weigh Module

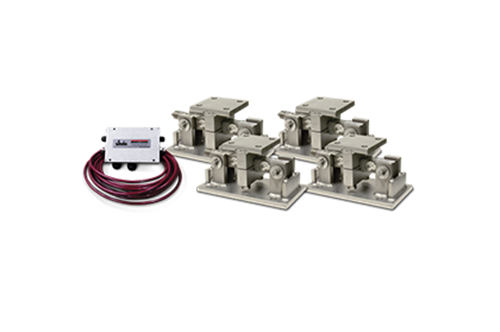

Complete Kit Includes

  • Three or four RL1600 HE stainless steel compression mounts with RL75016WHE stainless steel, hermetically sealed double-ended shear beam load cells
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of our hostile environment EL147HE SURVIVOR load cell cable

Standard Features

  • All stainless steel construction
  • Self-checking, easy-to-use design allows module to be bolted directly to tank leg without requiring additional mounting plates or load buttons
  • Center loaded

Applications

  • Medium-capacity tanks, bins and hoppers
  • Bulk material management
  • Ingredient batching, mixing and blending

Specifications

Rated Capacity C H H1 H2 L L1 L2 L3 T W W1 W2 W3
lb/in
1,000 to 5,000 0.56 5.00 0.50 0.50 9.25 2.75 4.00 6.25 1/2-13 UNC 5.00 3.75 2.75 4.00
10,000 to 25,000 0.78 7.87 0.75 0.75 12.00 6.00 8.00 7.50 3/4-10 UNC 8.00 6.00 6.00 8.00
