SURVIVOR® RL1700 HE Weigh Modules

$0.00

Weigh Modules Ideal for Moisture-Laden Environments

The SURVIVOR RL1700 HE weigh module offers precision-machined, weldless construction to maximize pressure washdown cleaning effectiveness. This design, coupled with integral jacking/shipping bolts, eases installation and minimizes maintenance costs. OIML C3-certified load cells in capacities from 5 kg to 5,000 kg provide accurate, consistent weighments. Ideal for multi-ingredient micro-batching applications, the RL1700 HE weigh module provides exceptional performance in hostile environments. The unique design of the RL1700 HE weigh module isolates the load cell from side loads and overloads, minimizing load cell mechanical damage and eliminating the need for extraneous hardware. The RL1700 HE weigh module offers a guaranteed waterproof rating to ensure reliable performance in moisture-laden environments.

Applications:

  • Multi-ingredient micro-batching
  • Meat and poultry processing
  • Batching/blending
  • Dye/ink blending
Download product PDF
Categories: ,

Features

SURVIVOR® RL1700 HE Weigh Modules

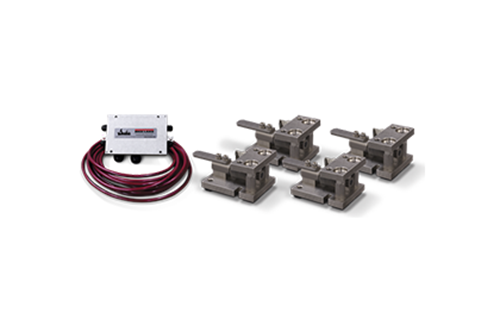

Complete Kit Includes

  • Three or four RL1700 HE stainless steel compression mounts with NTEP Certified RL9018SS (5 to 250 kg) or RLHTO (500 to 5,000 kg) stainless steel, hermetically sealed single-ended beam load cells
  • One JB4SS NEMA Type 4X stainless steel signal-trim junction box
  • 25 ft of our hostile environment EL147HE SURVIVOR load cell cable

Standard Features

  • Capacities (per module) 1,000 lb to 25,000 lb
  • All stainless steel, weldless construction retains less residue and allows fast, thorough cleaning
  • Bolt-in-place design; module bolts directly to tank leg without requiring additional load buttons or mounting plates
  • Self-checking with lift-off/tip-over protection and jacking/shipping bolts
  • Load cell is isolated from overload in all directions

Applications

  • Multi-ingredient micro-batching
  • Meat and poultry processing
  • Batching/blending
  • Dye/ink blending

Specifications

Rated Capacity C B *H1 **H2 L L1 L2 L3 L4 L5 W W1 W2 W3
kg/mm
5 to 250 13.1 1/2-20 UNF 80.0 86.1 131.8 63.8 76.0 42.0 56.0 14.1 101.4 70.0 15.5 25.4
500 to 2,000 13.1 5/8-18 UNF 101.6 109.4 165.1 71.2 129.5 15.5 75.5 60.0 110.0 70.0 20.0 31.8
5,000 19.8 3/4-10 UNF 135.0 143.0 215.0 81.0 161.0 20.0 90.0 70.0 150.0 90.0 30.0 40.0
* In weighing position     ** In jacked-up position for load cell shipping or removal
