Incorporating an articulating load plate, hardened load pin and double-ended beam load cell into one simple design, the SURVIVOR RL2100 HE weigh module tolerates eccentric loads and side loads of up to 100 percent of capacity. The RL2100 HE weigh module comes standard with NTEP Certified, 1:5000 division Class IIIL load cells, yielding up to 0.02% total error. An integral conduit adapter offers added washdown protection. These standard features give the RL2100 HE weigh module accuracy and dependability in one heavyweight package. The simple load introduction and load cell design provides consistent accuracy in washdown applications, making the RL2100 HE weigh module ideal for high-capacity hostile environments.
Applications
Heavy-capacity tanks, blenders, reactors and bulk inventory management

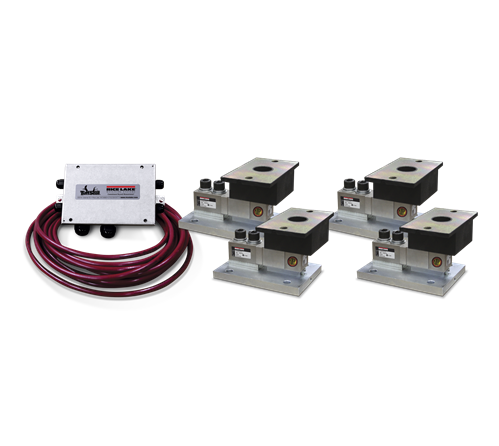

Three or four RL2100 HE stainless steel compression mounts with NTEP Certified RL75060S or RL75058S-LP stainless steel, welded seal double-ended beam load cells
One JB4SS NEMA Type 4X stainless steel signal-trim junction box
25 ft of our hostile environment EL147HE SURVIVOR load cell cable
Standard Features
NTEP Certified load cells, 5,000 d, Class IIIL/10,000 d, Class IIIL multiple cell
All stainless steel construction
Bolt-in-place design; module bolts directly to tank leg without requiring additional load buttons or mounting plates
Self-checking design with lift-off/tip-over protection
Applications
Heavy-capacity tanks, blenders, reactors and bulk inventory management
