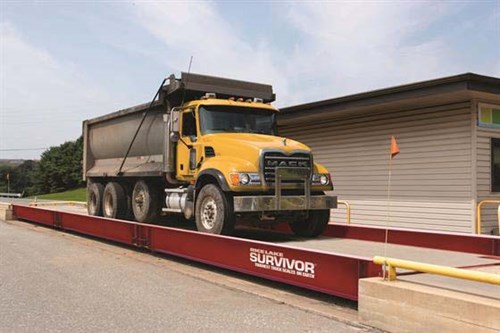

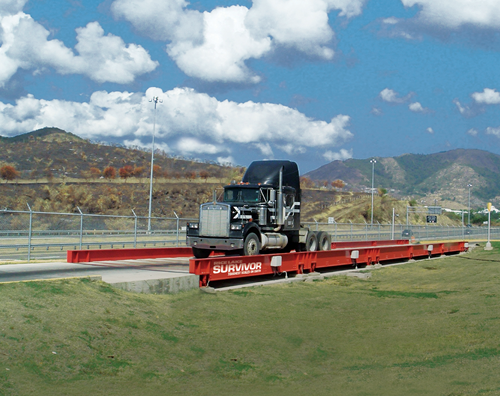

SURVIVOR® SR Siderail, Concrete Deck Truck Scale

$0.00

Proven the Toughest Truck Scale Made, Any Way You Look at It

The SURVIVOR SR Series side rail truck scale offers superior strength and longevity proven by the SURVIVOR brand. With design elements that outperform competitor brands, a SURVIVOR SR truck scale offers the best total cost of ownership in the industry.

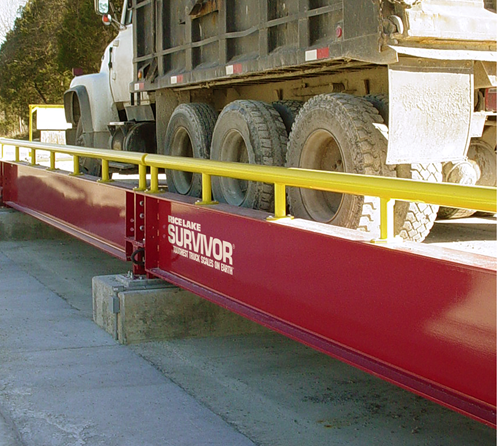

SURVIVOR SR stands up to constant heavy loading, with more wide-flange I-beams integrated throughout the weighbridge than other leading brands, and massive, wide-flange I-beams adding rigidity to each side of the weighbridge and acting as side guides for safe truck loading.

Custom sizes and capacities are available for fitting into nearly any application’s site requirements and space constraints.

Download product PDF
Category:

Features

  • 8-inch reinforced concrete deck
  • G-force mount assemblies return the scale to center without check rods or bumper bolts
  • Cables completely encased in rodent-proof conduit
  • Thorough finishing process includes cleaning of steel before and after welding, followed by either high solids urethane liquid paint or durable powder paint

Options

  • Steel deck
  • 20 lb division
  • 50 lb division/400,000-pound capacity
  • 1/2, 3/8, or 1-inch deck plate upgrade
  • Manhole
  • Slotted manhole
  • Grain dump
  • End cleanout
  • Stainless steel load cells
  • Stainless steel suspension hardware
  • Galvanized weighbridge and suspension hardware
  • Corrosion-resistant coating
  • 3/8-inch runners
  • Side deflector plates
  • Dolly down plate
  • iQUBE2® digital diagnostic junction box bundle

Specifications

Load Cells:
Rice Lake RL75058-LP alloy steel,
Double-ended beam
75,000 lb capacity

Mount Assemblies:
G-force self-checking mounting system

Junction Box:
JB8SPT Tuffseal® polycarbonate NEMA Type 4X enclosure with
overlapping solid cover, stainless steel screws

 Platform Size:
10 to 117 ft length
11 ft, 12 ft or 14 ft width

Scale Profile:
15.5 in (no grout) 17 in (grout)
(custom profiles available)

Deck Thickness:
8 in

Full Scale Capacity:
Up to 270,000 lb

 Concentrated Load Capacity (CLC):
120,000 lb

Dual Tandem Axle (DTA):
120,000 lb

Warranty:
Weighbridge: 5-year or 12-year limited
Parts: 5-year or 12-year limited, including lightning protection

Approvals:
NTEP CC 98-011, Class IIIL
Measurement Canada AM-5413

Options

44566 Truck Scale,10’x11′ Siderail,120,000lb CAP,SR1011-SC-60,CLC=120,000lb
44567 Truck Scale,20’x11′ Siderail,120,000lb CAP,SR2011-SC-60,CLC=120,000lb
44569 Truck Scale,35’x11′ Siderail,120,000lb CAP,SR3511-SC-60,CLC=120,000lb
44570 Truck Scale,40’x11′ Siderail,120,000lb CAP,SR4011-SC-60,CLC=120,000lb
44571 Truck Scale,47’x11′ Siderail,120,000lb CAP,SR4711-SC-60,CLC=120,000lb
44572 Truck Scale,60’x11′ Siderail,200,000lb CAP,SR6011-SC-100,CLC=120,000lb
44573 Truck Scale,70’x11′ Siderail,200,000lb CAP,SR7011-SC-100,CLC=120,000lb
44574 Truck Scale,70’x11′ Siderail,200,000lb CAP,SR7011-SC-100,CLC=120,000lb
44575 Truck Scale,80’x11′ Siderail,200,000lb CAP,SR8011-SC-100,CLC=120,000lb
44577 Truck Scale,100’x11′ Siderail,200,000lb CAP,SR10011-SC-100,CLC=120,000lb
44578 Truck Scale,117’x11′ Siderail,200,000lb CAP,SR11711-SC-100,CLC=120,000lb
44568 Truck Scale,24’x11′ Siderail,120,000lb CAP,SR2411-SC-60,CLC=120,000lb
44579 Truck Scale,10’x12′ Siderail,120,000lb CAP,SR1012-SC-60,CLC=120,000lb
44580 Truck Scale,20’x12′ Siderail,120,000lb CAP,SR2012-SC-60,CLC=120,000lb
44581 Truck Scale,24’x12′ Siderail,120,000lb CAP,SR2412-SC-60,CLC=120,000lb
44583 Truck Scale,40’x12′ Siderail,120,000lb CAP,SR4012-SC-60,CLC=120,000lb
44585 Truck Scale,60’x12′ Siderail,200,000lb CAP,SR6012-SC-100,CLC120,000lb
44586 Truck Scale,70’x12′ Siderail,200,000lb CAP,SR7012-SC-100,CLC=120,000lb
44587 Truck Scale,70’x12′ Siderail,200,000lb CAP,SR7012-SC-100,CLC=120,000lb
44588 Truck Scale,80’x12′ Siderail,200,000lb CAP,SR8012-SC-100,CLC=120,000lb
44590 Truck Scale,100’x12′ Siderail,200,000lb CAP,SR10012-SC-100,CLC=120,000lb
44591 Truck Scale,117’x12′ Siderail,200,000lb CAP,SR11712-SC-100,CLC=120,000lb
44594 Truck Scale,24’x14′ Siderail,120,000lb CAP,SR2414-SC-60,CLC=120,000lb
44595 Truck Scale,35’x14′ Siderail,120,000lb CAP,SR3514-SC-60,CLC=120,000lb
44601 Truck Scale,80’x14′ Siderail, 200,000lb CAP,SR8014-SC-100, CLC=120,000lb
44602 Truck Scale,93’x14′ Siderail,200,000lb CAP,SR9314-SC-100,CLC=120,000lb
44603 Truck Scale,100’x14′ Siderail,200,000lb CAP,SR10014-SC-100,CLC=120,000lb
44592 Truck Scale,10’x14′ Siderail,120,000lb CAP,SR1014-SC-60,CLC=120,000lb
44593 Truck Scale,20’x14′ Siderail,120,000lb CAP,SR2014-SC-60,CLC=120,000lb
44596 Truck Scale,40’x14′ Siderail,120,000lb CAP,SR4014-SC-60,CLC=120,000lb
44597 Truck Scale,47’x14′ Siderail,120,000lb CAP,SR4714-SC-60,CLC=120,000lb
44598 Truck Scale,60’x14′ Siderail,200,000lb CAP,SR6014-SC-100,CLC=120,000lb
44599 Truck Scale,70’x14′ Siderail,200,000lb CAP,SR7014-SC-100,CLC=120,000lb
44600 Truck Scale,70’x14′ Siderail,200,000lb CAP,SR7014-SC-100,CLC=120,000lb
44604 Truck Scale,117’x14′ Siderail,200,000lb CAP,SR11714-SC-100,CLC-120,000lb
