Survivor SR Truck Scale

$0.00

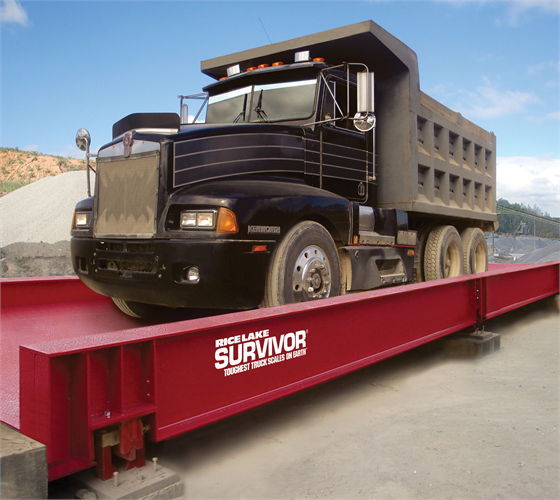

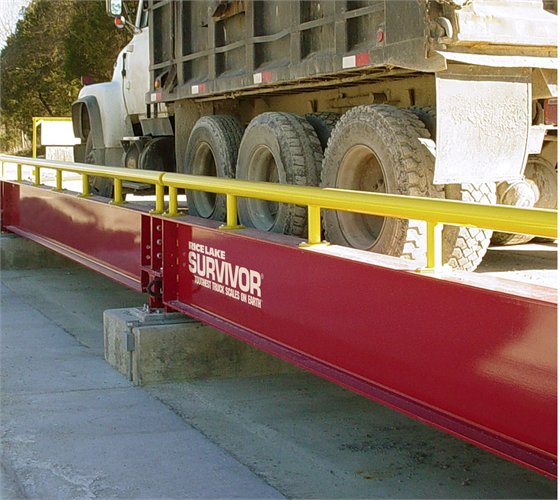

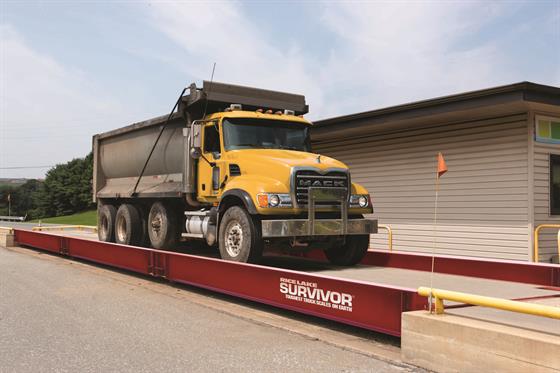

The SURVIVOR SR for above-ground installation is available with a concrete or steel deck. For unbeatable strength and lifelong use, the SR model offers Rice Lake’s wide-flange I-beam construction throughout the weighbridge; and massive wide-flange I-beams on either side of the SR distinguish it from other scale series.

Download product PDF
Categories: ,

Features

  • 75,000lb capacity load cells and pre-assembled G-Force? mounts
  • Junction box(es) appropriate for number of load cells utilized
  • NTEP Certified 98-011
  • 120,000lb Concentrated Load Capacity (CLC)
  • 120,000lb Dual Tandem Axle (DTA)
  • Up to 270,000lb full scale capacity
  • 8in thick reinforced concrete deck
  • Up to 42ft section span
  • Three standard widths: 11ft, 12ft and 14ft

Specifications

  • Load Cells and Mount Assemblies: 75,000 lb capacity; G-Force? patented self-checking mounting system
  • Full Scale Capacity: Up to 270,000 lb
  • Concentrated Load Capacity (CLC): 120,000 lb
  • Dual Tandom Axle (DTA): 120,000 lb
  • Approvals: NTEP Certified per H-44, Class IIIL, 98-011 Measurement Canada AM-5413
  • Warranty:</strong Five-year or Twelve-year limited warranty on the weighbridge. Five-year or Twelve-year parts warranty, including lightning protection

Options

  • Steel deck
