T Series T610, T620 and T105

$0.00

The T6xx modules are Digital weight transmitters that use the rinWIRE interface which implements RS485 serial communication protocol to connect devices in a ring network.

Protocol uses ASCII characters with a single master POLL / RESPONSE message structure.

Each sensor regenerates the communication signals so there is no need for network termination devices to balance the network as with standard RS485.

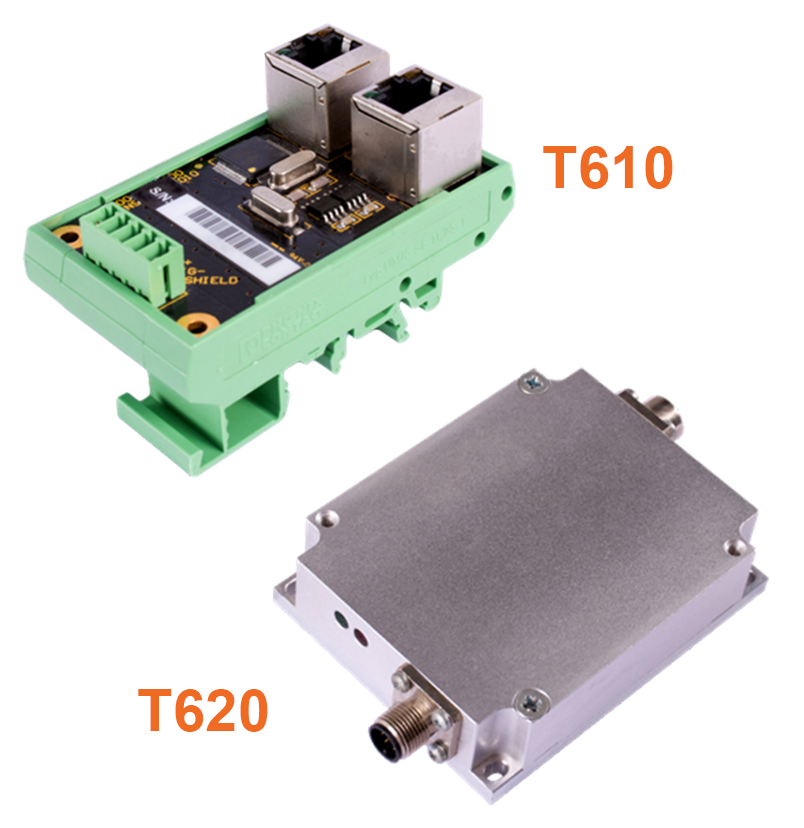

Digital weight transmitter

     Indoor:

  • T610 modules are designed for indoor use.
  • RJ45 connectors are used for connections.

     Outdoor:

  • T620 modules are designed for outdoor use.
  • M12 connectors are used for connections.
  • Rugged potted metal housing.
  • IP68 rated.

RinWire interface converter

  • T105 Protocol Board to convert Standard RS232 to RS485.
  • With external power supply.
  • Reverse Polarity and short circuit protected.
Download product PDF
Category:

Features

  • 8-way cat5 cables of POE Standard connections.
  • Digital weigh transmission using standard RS485 serial communication.
  • M12 waterproof connectors for outdoor.
  • RJ45 connectors for Indoor.
  • Supports ring, tree, star and custom network topologies.
  • Up to 31 Devices can be connected.
