T20 – Low Profile Assembly for Vessel Weighing

Capacities: 1t – 30t

The T20 Weighing Assembly is specifically designed as a reliable, simple, low cost solution for weighing of  tanks, silos and vessels where ‘level measurement’ is the main requirement. It offers an excellent compromise between accuracy and cost.

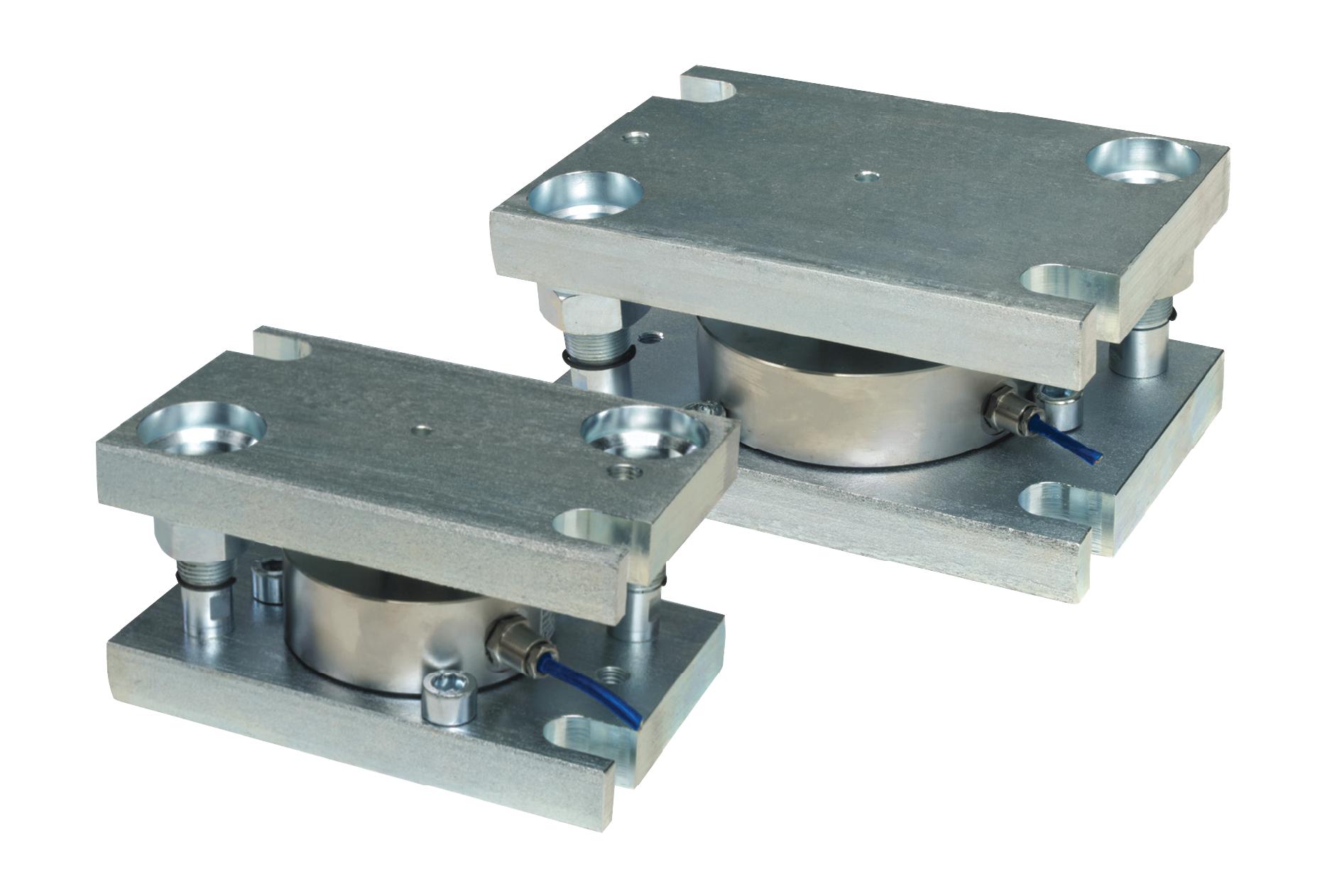

The stainless steel T20 load cell is mounted in either a zinc plated or stainless steel, compact LA20 mounting accessory that has integral jacking bolts to allow for load cell installation and removal, lift-off prevention and allowance for the angular misalignment that is often present in silos or other metal structures. The LA20 accessory incorporates a hardened alloy steel or stainless steel load bearing surface, for optimum force application to the T20 load cell.

The design is suitable for use either as a totally live system with load cells under all legs/support points of the vessel or – where cost is critical – as a dummy system with either one live and two dummy cells (total 3 cells) or two live and two dummy cells (total 4 cells).
