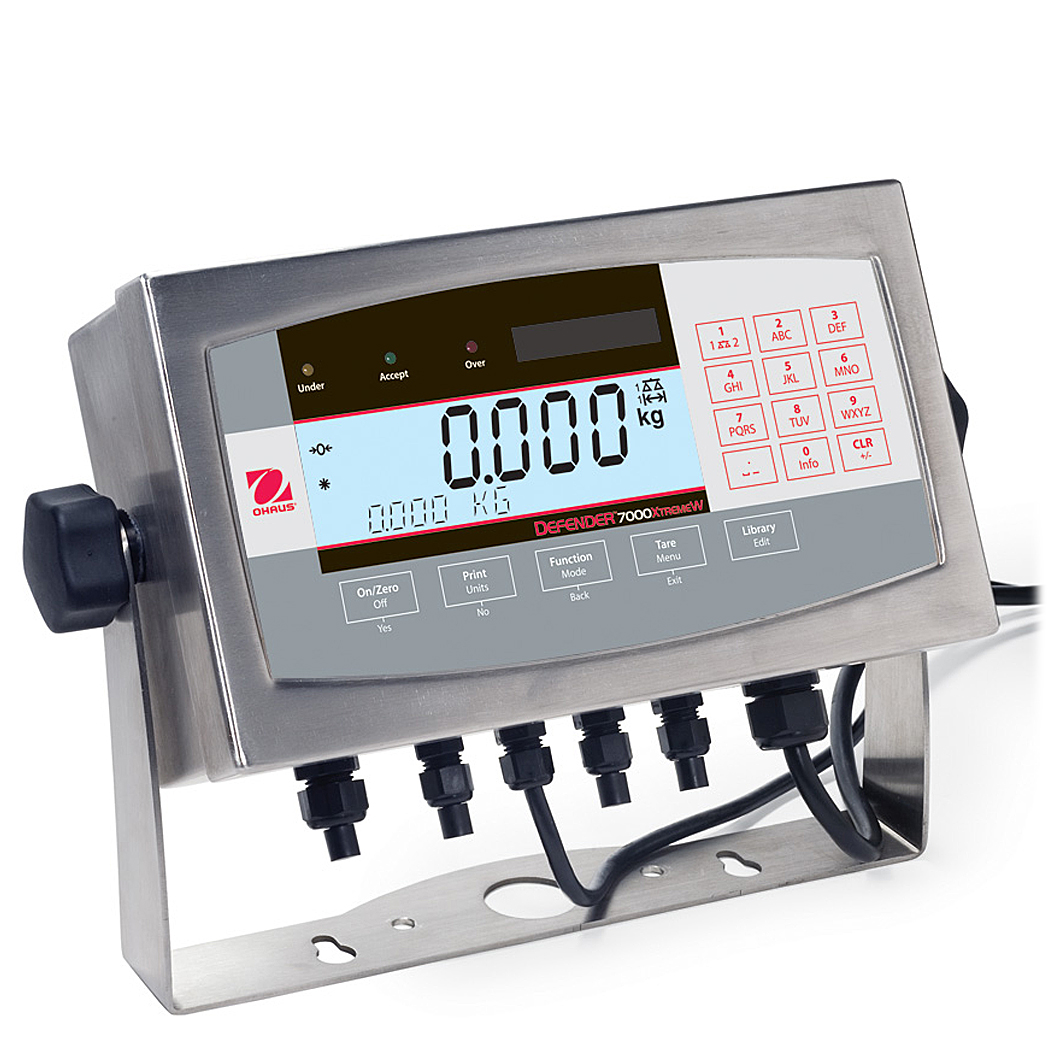

T71XW Weight Indicator

$0.00

High Performance Stainless Steel Washdown Indicator for Advanced Applications
  • T71XW can support advanced features such as accumulation mode, a 255-item library and optional alibi memory capability, and also has a 1:50,000 maximum displayed resolution.
  • This advanced indicator has dual-scale capabilities in which it can display the weights from two platforms and is powerful enough to drive up to 8 – 350 ohm load cells per platform.
  • With a full alphanumeric keypad and dual-line display, as well as SmarText? software that utilizes text prompts to guide users through set up and use, T71XW is simple to operate.
Download product PDF
Category:

Features

  • Applications? Weighing, Parts Counting, Percent Weighing, Checkweighing, Dynamic/Animal Weighing, Accumulation, Display Hold
  • Display? Backlit liquid crystal display (LCD) with secondary information line, 3 color checkweighing LEDs
  • Operation? Power cord (included) or rechargeable battery (accessory sold separately)
  • Communication? RS232 (included) and 2nd RS232 or RS422/RS485 (accessories sold separately). GLP/GMP data output with real-time clock.
  • Construction? IP66/NEMA 4X stainless steel housing and mounting bracket
  • Design Features? User-configurable resolution 50,000d/10,000e, Alibi memory kit (accessory sold separately), five operating languages, OIML Approved, NTEP Certified and Measurement Canada Approved

Options

Interface Options
AC Relay Kit, T71P/T71XW……………………………………………..80500720
DC Relay Kit, T71P/T71XW……………………………………………..80500727
RS485/422 Interface Kit, T71P/T71XW……………………………..80500731
RS232 Interface Kit, T71P/T71XW……………………………………80500733
Foot Switch…………………………………………………………………..71173378
Power Options
Rechargeable Battery Kit, T71P/T71XW…………………………….80500729
Mounting Accessories
Wall Mount Kit, T71P……………………………………………………..72200227
Wall Mount Kit, T71XW………………………………………………….80500735
Base Mount Kit, T71P…………………………………………………….80500722
Column Mount Kit, 35cm, painted, T71…………………………….80500723
Column Mount Kit, 68cm, painted, T71…………………………….80500724
Column Mount Kit, 35cm, stainless steel, T71…………………..80500725
Column Mount Kit, 68cm, stainless steel, T71…………………..80500726
Compatible with all existing columns for Champs-CD/CW11/CD3X/CKW
Other Accessories
Compact Dot Matrix Impact Printer………………………………….80252042
Compact Thermal Printer………………………………………………..80251992
OHAUS Collect Software…………………………………………………80500746
Alibi Memory Option Kit………………………………………………….80500503
TAL Software WinWedge………………………………………………..SW12W
Paper for Printer, 80252042 (1 roll)…………………………………80251932
Ribbon for Printer, 80252042………………………………………….80251933
RS232 Cable & Adapter, 80252042 Printer to T71XW………..80252574
RS232 Cable, PC 9 Pin to T71XW……………………………………80500552
RS232 Cable, PC 25-pin to T71XW………………………………….80500553
RS232 Cable & Adapter, 80252042 Printer to T71P……………80252571
RS232 Cable, PC 9-pin to T71…………………………………………80500525
RS232 Cable, PC 25-pin to T71P……………………………………..80500524

Models

  • Model #:? T71XW? Resolution? 50,000? Resolution (Certified)? 10,000? Battery Life? 35 Hours with Rechargeable Battery
