T95 High Accuracy Pendulum Folded Shear Beam

capacities 2t – 20t

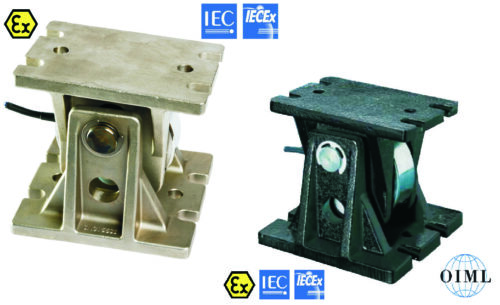

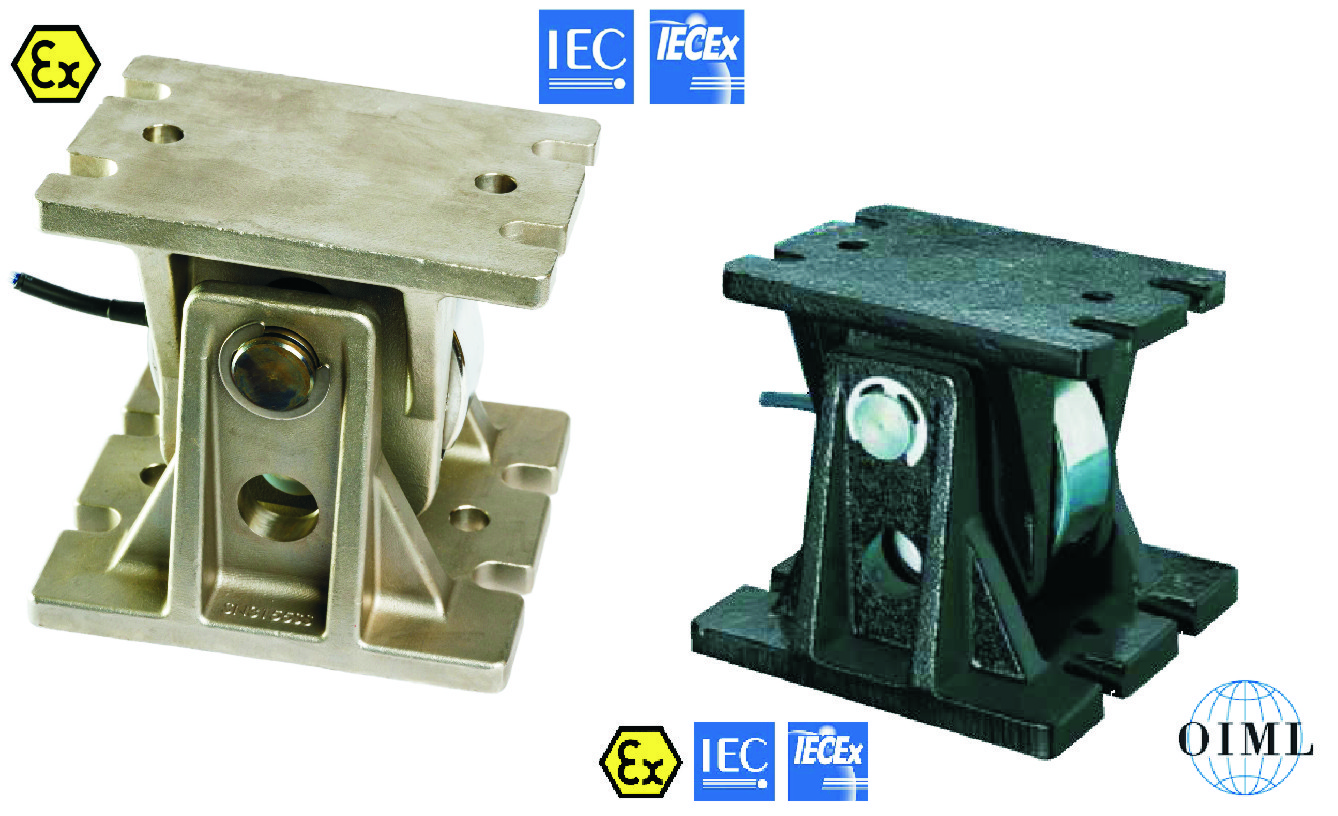

The T95 weighing assembly comprises a stainless steel high accuracy load cell, complete with a tough mounting accessory in painted alloy steel (optionally stainless steel up to 10t). Although the assembly is used in compression, the cell is mounted in a unique pendulum configuration and loaded in tension. This ensures that the load vector is always maintained through the central axis of the load cell, even when the assembly is subjected to considerable movement or misalignment. This results in high accuracy weighing.

The T95 is most suitable for high accuracy applications where movement or vibration is present, e.g. mixers, agitators, catalyst vessels, weighing platforms, axle weighers and vehicle weigh-in-motion (WIM) systems. The T95 load cell is also available with ATEX and IECEx approval certification for all gas and dust zones. Barriers are not required for use in gas zone 2 or dust zones 20, 21, 22.

For applications in aggressive environments where stress corrosion or acid attack is a concern, a special Parylene coating can be specified as an
