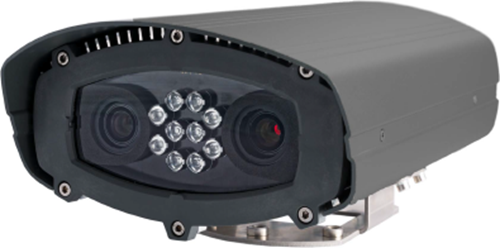

TagMaster CT-45 Network IP Camera with License Plate Recognition (LPR)

$0.00

The CT-45 camera is an all-in-one solution and can interface via 26-bit Wiegand into an access control solution. The JetManagement Suite software runs internally ensuring an efficient system.

The CT-45 is an infrared LPR camera with an additional overview camera and image. In standalone mode the CT-45 operates and processes the collected data with its onboard LPR engine.

Download product PDF
Category:

Features

  • Compatible with OnTrak® Enterprise
  • Plate localization, country and state identifiers
  • Optical Character Recognition (OCR) Library
  • Number and letter segmentation
  • Works in daylight and low-light conditions
  • Operating range, 10 to 82 ft (3 to 25 m)

Specifications

Read Range:
10 to 82 ft (3 to 25 m)

Image Sensor:
2 megapixels
1/2.8 in CMOS sensor

Frame Rate:
25 FPS

Interface:
LAN (weatherproof standard RJ-45) 10/100 Mbps Ethernet interface Wi-Fi (for easy setup)
Relay Control (1 input, 2 outputs)
Wiegand

 Power Input/Network:
24 to 48V DC, PoE+ IEEE 802.3at
Requires CAT 5e or better network, POE+ network switch or 24-48VDC power supply

Power Consumption:
Average 18 W, max 25 W

Dimensions:
4.0 × 7.0 × 11.5 in
(102 × 180 × 290 mm)

Weight:
6.5 lb (2.95 kg)

Rating:
IP66

 Operating Temperature:
-40 °F to 140 °F (-40 °C to +60 °C) 0% to 95% RH

Approvals:
IEC 62368-1, Electrical Safety General
IEC 60950-22, Electrical Safety Outdoor
IEC 62471, Photobiological
EN 55022:2010, Emissions
EN 55024:2010, Immunity
IEC 60068-2-27 Ea, Shock
IEC 60068-2-64 Fh, Vibration
UL94 HB, Flammability
RoHS directive 2002/95/EC and RoHS2 directive 2011/65/EU

Options

220688 Camera, LPR License Plate Recognition, requires CAT 5e or better network, POE+ network switch or 24-48VDC power supply.
220690 Mounting Bracket, LPR Camera. Universal mounting bracket for license plate recognition camera.
220691 Cable, Power & Relay LPR camera power cable
