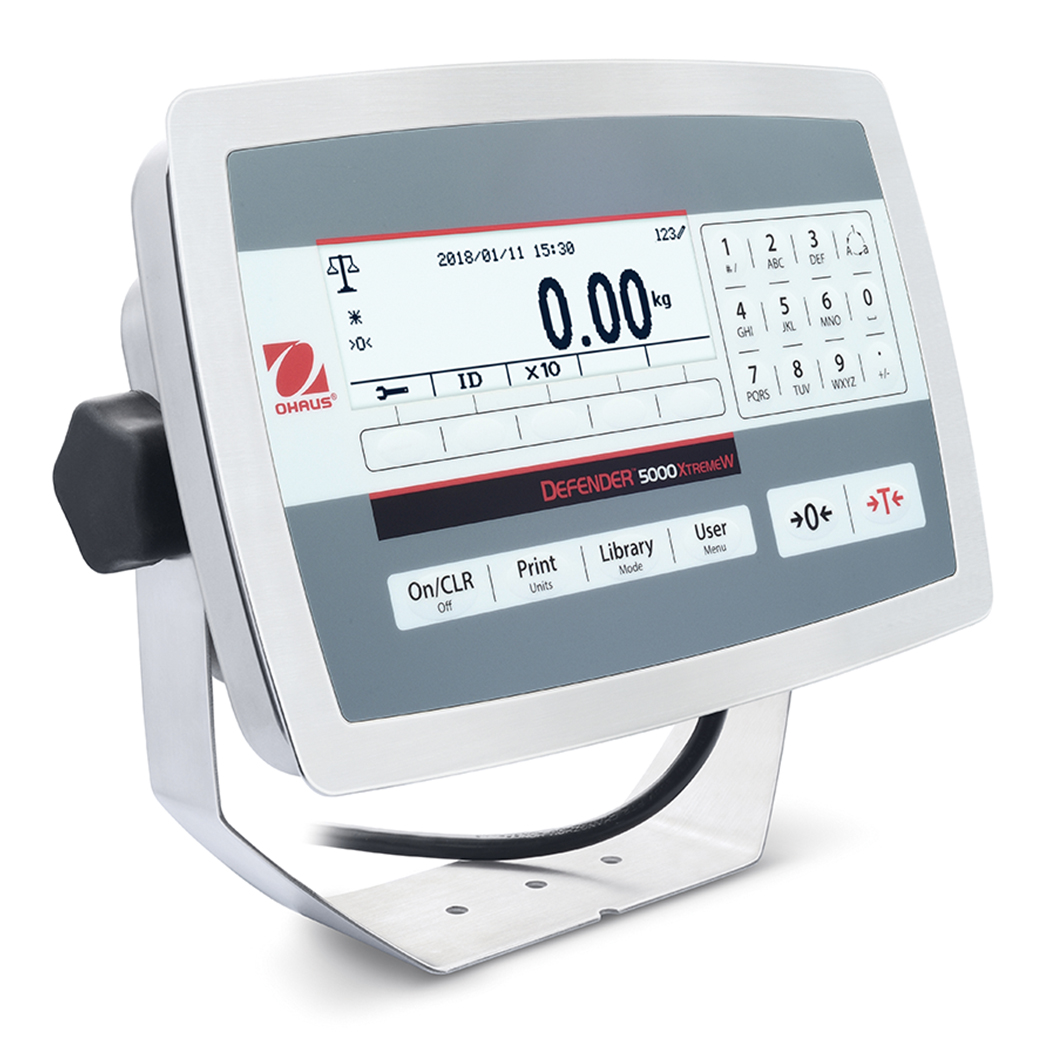

TD52XW

$0.00

Multifunctional Indicator for Standard Industrial Applications

Download product PDF

Features

Applications
Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold)
Display
Backlit Liquid Crystal Display (LCD), 256 x 80 pixels
Operation
Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)
Communication
Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock
Construction
IP68/NEMA 4X stainless steel housing and mounting bracket
Design Features
Check weighing symbols with selectable operation and audible signal settings, menu lock switch, multiple operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim, auto-off, auto tare, screensaver

Options

Accessories
WiFi/BT Dongle, OHAUS (Requires 30424406)2. . . . . . 30412537
Analog Output Kit, TD523. . . . . . . . . . . . . . . . . . . . . . 30424403
2nd RS232/RS485/USB, TD523. . . . . . . . . . . . . . . . . 30424404
Battery Kit, Li-ion, TD52. . . . . . . . . . . . . . . . . . . . . . . 30424405
USB Host for Dongle, TD52. . . . . . . . . . . . . . . . . . . . 30424406
Light Tower, 3 Colors, 243mm, IP65(Requires 30097591). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30424021
In-use Cover Set, TD52P. . . . . . . . . . . . . . . . . . . . . . . 30424022
In-use Cover Set, TD52XW. . . . . . . . . . . . . . . . . . . . . 30424023
In-use Cover set (10), TD52P . . . . . . . . . . . . . . . . . . .30469948
In-use Cover set (10), TD52XW. . . . . . . . . . . . . . . . .30469949
Wall Mount Kit, SST, TD52XW. . . . . . . . . . . . . . . . . . 30424026
Wall Mount Kit, CS, TD52P. . . . . . . . . . . . . . . . . . . . . 30424027
LC Extension Cable, 9 meters, D521. . . . . . . . . . . . .30424409
M16 Gland with Ferrite, to TD52. . . . . . . . . . . . . . . 30379716
Micro SD Card, 8G. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30303533
I/O with Relay (2 In/4 Out)3. . . . . . . . . . . . . . . . . . . . . 30097591
Ethernet Kit, D522. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30429666
Impact Printer SF40A. . . . . . . . . . . . . . . . . . . . . . . . . . 30064203
Thermal Printer STP-103. . . . . . . . . . . . . . . . . . . . . . . 80251992

Models

Model #:??TD52XW

Resolution

75,000

Resolution (Certified)

10,000

Battery Life

20 Hours with Rechargeable Battery
