Test Weight Kits

$0.00

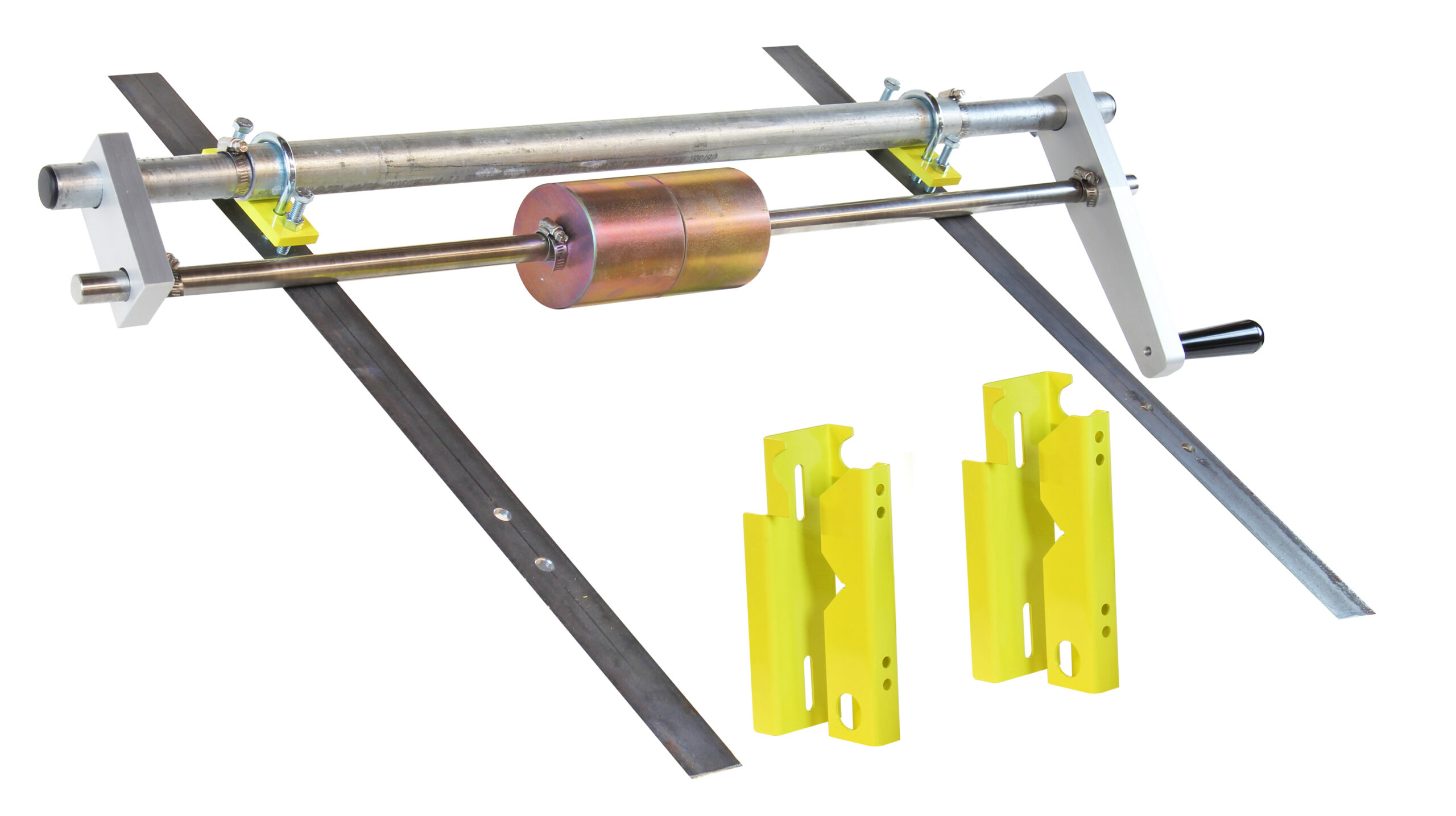

Belt-Way Self-Storing Test Weight Kits are designed for safe and easy calibration. Self-Storing Test Weight Kits are permanently installed on the conveyor, eliminating the need to hand carry weights to the scale. Test weight kit specifications vary due to scale capacity and conveyor width.

Download product PDF
Categories: ,

Features

  • 2, 3, 4, and 5 Test Weight Configurations
  • Lightweight Test Weight Implements
  • Lightweight Hand Arms

Specifications

Number of Weights: BW45TWKIT: 2weights, BW100TWKIT: 3 weights, BW200TWKIT: 4 weights, BW350TWKIT: 5 weights
Scale Pipe to Test Weight Kit Width: 36”Scale Pipe Width = 42” Test Weight Kit Width, 48” Scale Pipe Width = 54” Test Weight Kit Width, 60” Scale Pipe Width = 66” Test Weight Kit Width, 72” Scale Pipe Width = 78” Test Weight Kit Width.
Included in Each Kit: 2 U-Bolts; 2 Pipe Plugs; 8 Hose Clamps; 2 3/8” bolts; 4 Nuts, washers, and lock washers; 4 Anti-seize grease packets; 1” galvanized pipe 7/8” Stainless bar; 4” Round Test Weights; 2 Modified V-Blocks and Covers, 1 Handle, Handle Arm, and Pivot Arm.
Test Weight Poundage: 13 lbs.
Weight Per Inch: .173 lbs. / in.
Handle Arm Weight: 2 lbs.

Options

BW45TWKIT-54 Test Wt Kit 45-54″ Pipe
BW45TWKIT-66 Test Wt Kit 45-66″ Pipe
BW45TWKIT-78 Test Wt Kit 45-78″ Pipe
BW45TWKIT-90 Test Wt Kit 45-90” Pipe
BW100TWKIT-54 Test Wt Kit 100-54″ Pipe
BW100TWKIT-66 Test Wt Kit 100-66″ Pipe
BW100TWKIT-78 Test Wt Kit 100-78″ Pipe
BW100TWKIT-90 Test Wt Kit 100-90” Pipe
BW200TWKIT-54 Test Wt Kit 200-54″ Pipe
BW200TWKIT-66 Test Wt Kit 200-66″ Pipe
BW200TWKIT-78 Test Wt Kit 200-78″ Pipe
BW200TWKIT-90 Test Wt Kit 200-90″ Pipe
BW350TWKIT-54 Test Wt Kit 350-54″ Pipe
BW350TWKIT-66 Test Wt Kit 350-66″ Pipe
BW350TWKIT-78 Test Wt Kit 350-78″ Pipe
BW350TWKIT-90 Test Wt Kit 350-90″ Pipe
BWSS45TWKIT-54 Stainless Stell Test Wt Kit 45-54″ Pipe
BWSS45TWKIT-66 Stainless Steel Test Wt Kit 45-66″ Pipe
BWSS45TWKIT-78 Stainless Steel Test Wt Kit 45-78″ Pipe
BWSS100TWKIT-54 Stainless Steel Test Wt Kit 100-54″ Pipe
BWSS100TWKIT-66 Stainless Steel Test Wt Kit 100-66″ Pipe
BWSS100TWKIT-78 Stainless Steel Test Wt Kit 100-78″ Pipe
BWSS200TWKIT-54 Stainless Steel Test Wt Kit 200-54″ Pipe
BWSS200TWKIT-66 Stainless Steel Test Wt Kit 200-66″ Pipe
BWSS200TWKIT-78 Stainless Steel Test Wt Kit 200-78″ Pipe
BWSS200TWKIT-90 Stainless Steel Test Wt Kit 200-90″ Pipe
BWSS350TWKIT-54 Stainless Steel Test Wt Kit 350-54″ Pipe
BWSS350TWKIT-66 Stainless Steel Test Wt Kit 350-66″ Pipe
BWSS350TWKIT-78 Stainless Steel Test Wt Kit 350-78″ Pipe
BWSS350TWKIT-90 Stainless Steel Test Wt Kit 350-90″ Pipe
