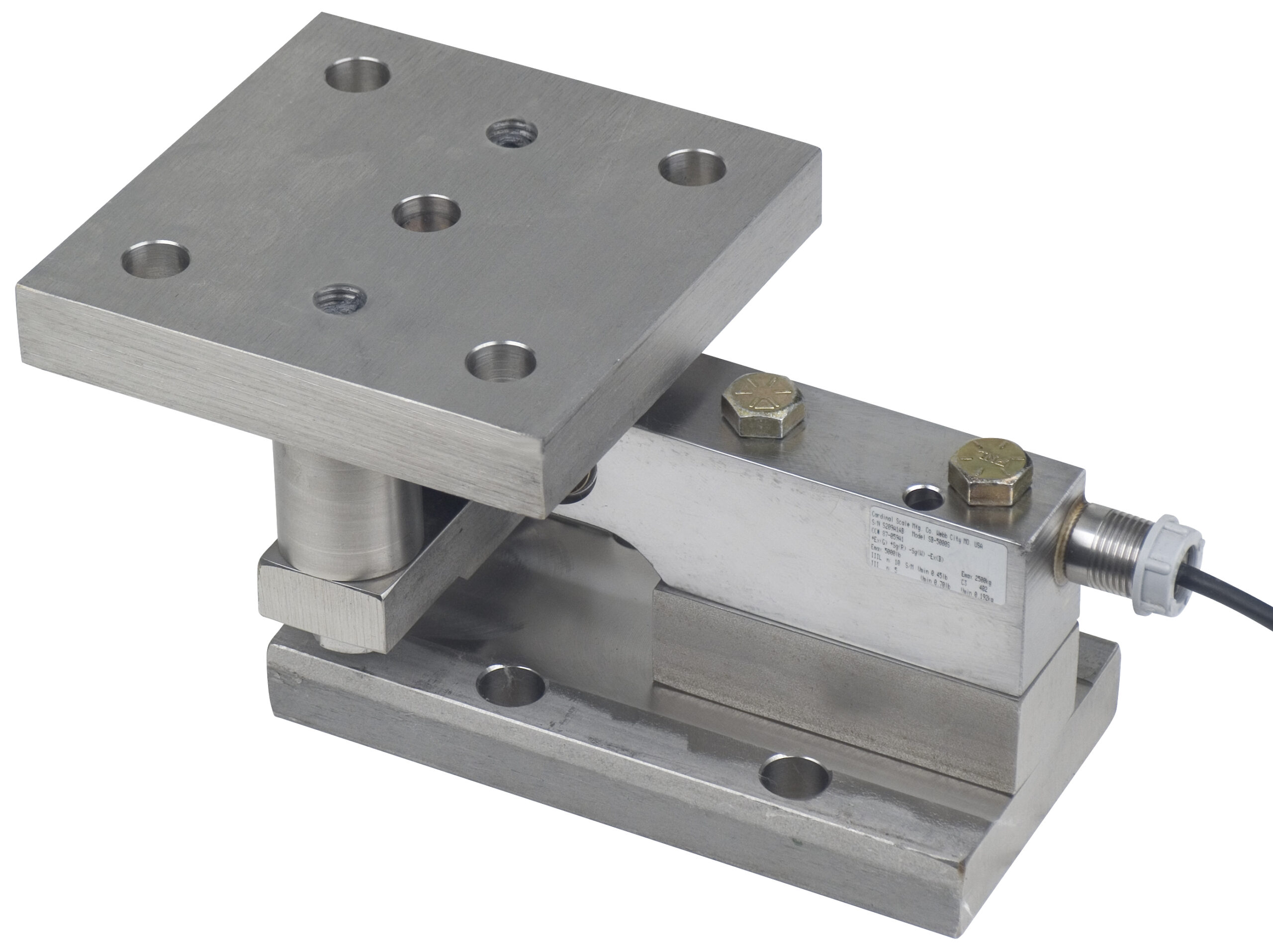

Cardinal Scale’s THBC electronic load cell kits are ideal for weighing tanks, hoppers, mixers, and conveyors. These self-checking load cell kits are available with mild steel or stainless steel stands, system capacities ranging from 7,500 lb (3,400 kg) up to 200,000 lb (90,700 kg), and stainless steel waterproof load cells. The THBC kits are ideal for medium-to-heavy capacity tank and hopper weighing, new or existing installations, and accommodate multi-legged tanks with up to 10 legs. They offer an easy-to-install, low-profile, bolt-down design. Each kit comes complete with 3 or 4 stainless steel load cells, self-checking load cell stands, load cell cable, and a stainless steel junction box. Special self-centering load buttons protect against offset side loads. The rugged, environmentally-sealed SB series shear beam load cells, also manufactured by Cardinal Scale, are NTEP, OIML, and VCAP certified.
Model: THBC series
Capacities: Standard model capacities ranging from 7,500 lb (3,400 kg) up to 80,000 lb (36,000 kg)
Load Cell Type: Stainless steel SB series shear beam load cells manufactured by Cardinal Scale
Load Cell Cable: 20 ft / 6 m
Stand Type: Self-checking, bolt-down design
Stand Construction: Stainless steel or powder-painted mild steel
Junction Box Type: Stainless steel 4 cell trim box
Junction Box Cable Length to Indicator: 30 ft / 9 m with 9-pin D connector

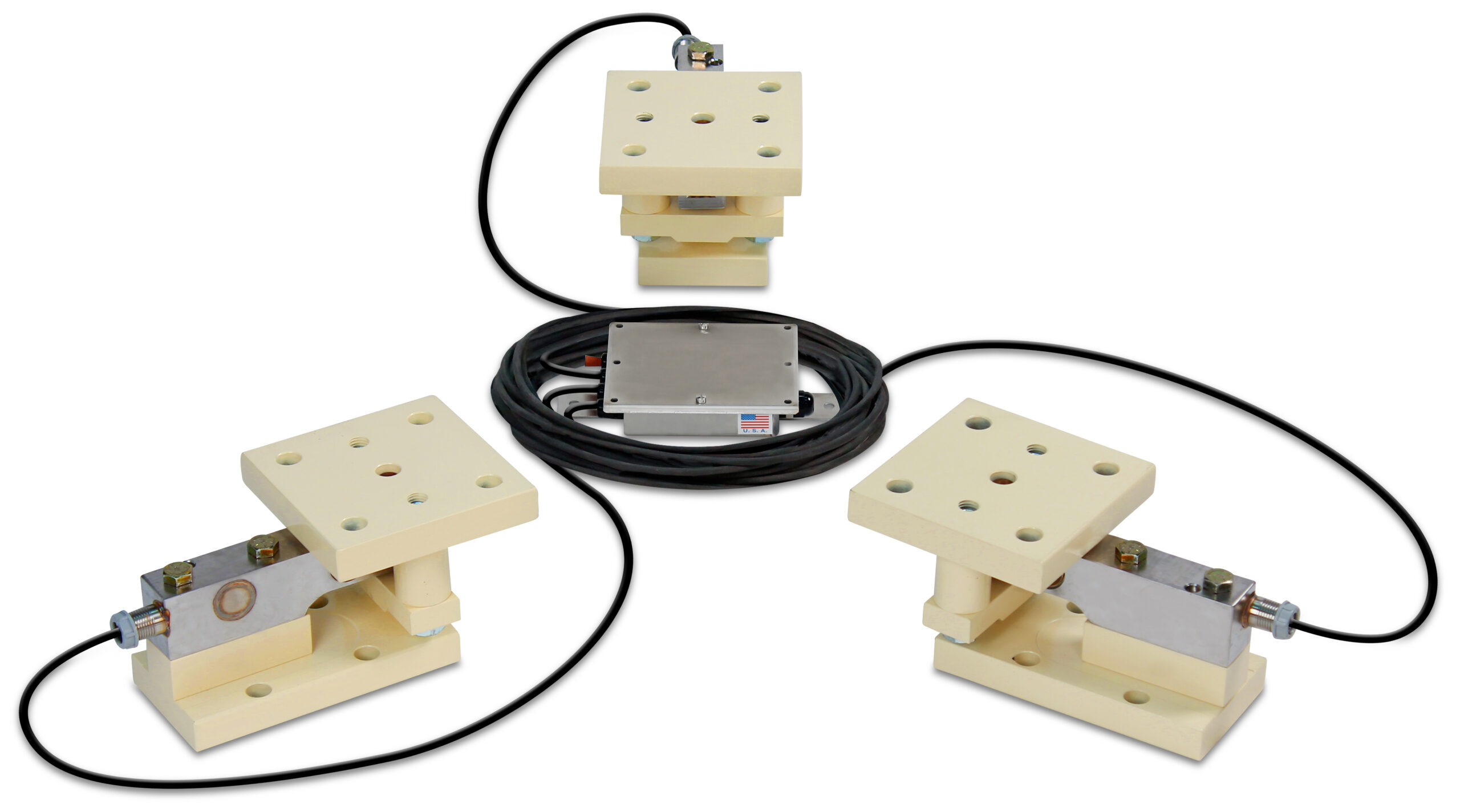

Included: Each kit consists of 3 or 4 self-checking stand assemblies, 3 or 4 stainless steel load cells, load cell cable, and 1 stainless steel NEMA 4 junction box.
Indicators: A wide selection of digital weight indicators are also available from Cardinal Scale
Applications: Load cell assemblies available for tank, hopper, mixer, and conveyor weighing
 |
THBC2.5-3 | Tank Scale, 3 Cell, 7,500 Lb Capacity, Mild Steel | Call For Pricing | ||
 |
THBC5-3 | Tank Scale, 3 Cell, 15,000 Lb Capacity, Mild Steel | Call For Pricing | ||
 |
THBC10-3 | Tank Scale, 3 Cell, 30,000 Lb Capacity, Mild Steel | Call For Pricing | ||
 |
THBC20-3 | Tank Scale, 3 Cell, 60,000 Lb Capacity, Mild Steel | Call For Pricing | ||
 |
THBCS2.5-3 | Tank Scale, 3 Cell, 7,500 Lb Capacity, Stainless Steel | Call For Pricing | ||
 |
THBCS5-3 | Tank Scale, 3 Cell, 15,000 Lb Capacity, Stainless Steel | Call For Pricing | ||
 |
THBCS10-3 | Tank Scale, 3 Cell, 30,000 Lb Capacity, Stainless Steel | Call For Pricing | ||
 |
THBCS20-3 | Tank Scale, 3 Cell, 60,000 Lb Capacity, Stainless Steel | Call For Pricing | ||
 |
THBC2.5-4 | Tank Scale, 4 Cell, 10,000 Lb Capacity, Mild Steel | Call For Pricing | ||
 |
THBC5-4 | Tank Scale, 4 Cell, 20,000 Lb Capacity, Mild Steel | Call For Pricing | ||
 |
THBC10-4 | Tank Scale, 4 Cell, 40,000 Lb Capacity, Mild Steel | Call For Pricing | ||
 |
THBC20-4 | Tank Scale, 4 Cell, 80,000 Lb Capacity, Mild Steel | Call For Pricing | ||
 |
THBCS2.5-4 | Tank Scale, 4 Cell, 10,000 Lb Capacity, Stainless Steel | Call For Pricing | ||
 |
THBCS5-4 | Tank Scale, 4 Cell, 20,000 Lb Capacity, Stainless Steel | Call For Pricing | ||
 |
THBCS10-4 | Tank Scale, 4 Cell, 40,000 Lb Capacity, Stainless Steel | Call For Pricing | ||
 |
THBCS20-4 | Tank Scale, 4 Cell, 80,000 Lb Capacity, Stainless Steel | Call For Pricing | ||
 |
THBC50K | Stand Assembly, DB Load Cell, Single Cell | Call For Pricing | ||
 |
THBC50K-4 | Stand Assembly, DB Load Cell, 4 Cell, J- Box | Call For Pricing | ||
 |
THBC50K-6 | Stand Assembly, DB Load Cell, 6 Cell, J-Box, Section Seal Box | Call For Pricing | ||
 |
THBC50K-8 | Stand Assembly, DB Load Cell, 8 Cell, J-Box, Section Seal Box, Trim Box | Call For Pricing |
