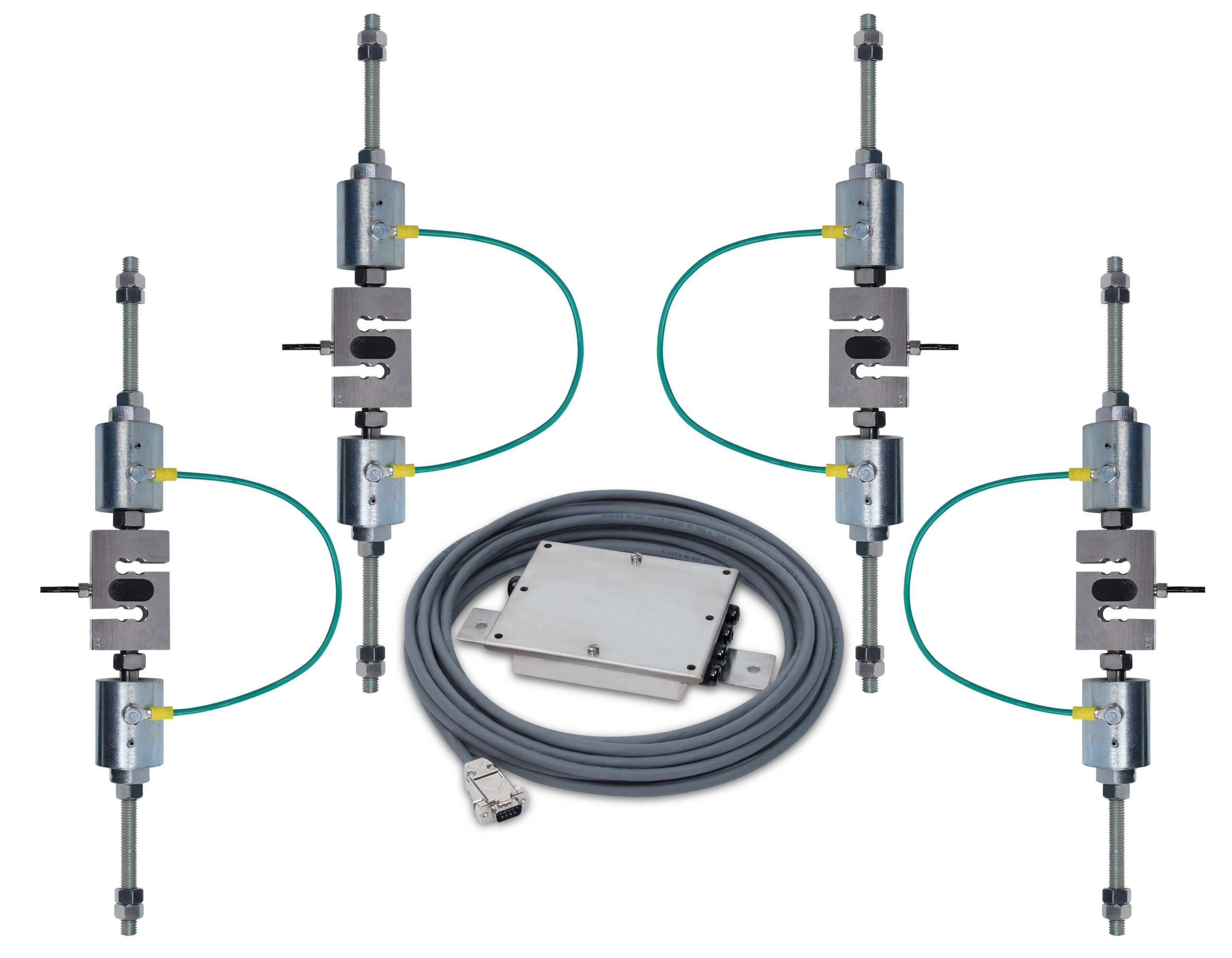

Cardinal Scale’s THTC series load cell kits are designed for use with suspended hoppers and tanks. Sixteen models are available in 3 or 4 cell arrays all featuring environmentally-sealed stainless steel load cells. The THTC weighing systems are resilient to temperature, moisture, and vibration fluctuations. The kits come with linkage options such as threaded rods (standard), J-bolts, or a combination of a threaded rod and a J-bolt, as well as custom-length rods. Each load cell kit comes complete with three or four linkage assemblies, stainless steel tension load cells, mild steel linkages, stainless steel junction box, and load cell cables. THTC kits are ideal for environments when floor-level restrictions include equipment, sanitary issues, or load-out applications. These load cell kits range from light-to-heavyweight applications—750 lb to 80,000 lb capacities. The load cell adapter and thread rod assembly are Teflon isolated.
Resilient to Temperature and Vibration Fluctuations
Special Length Rods Available in Custom Sizes
System Capacities Range from 750 lb to 80000 lb
Specifications

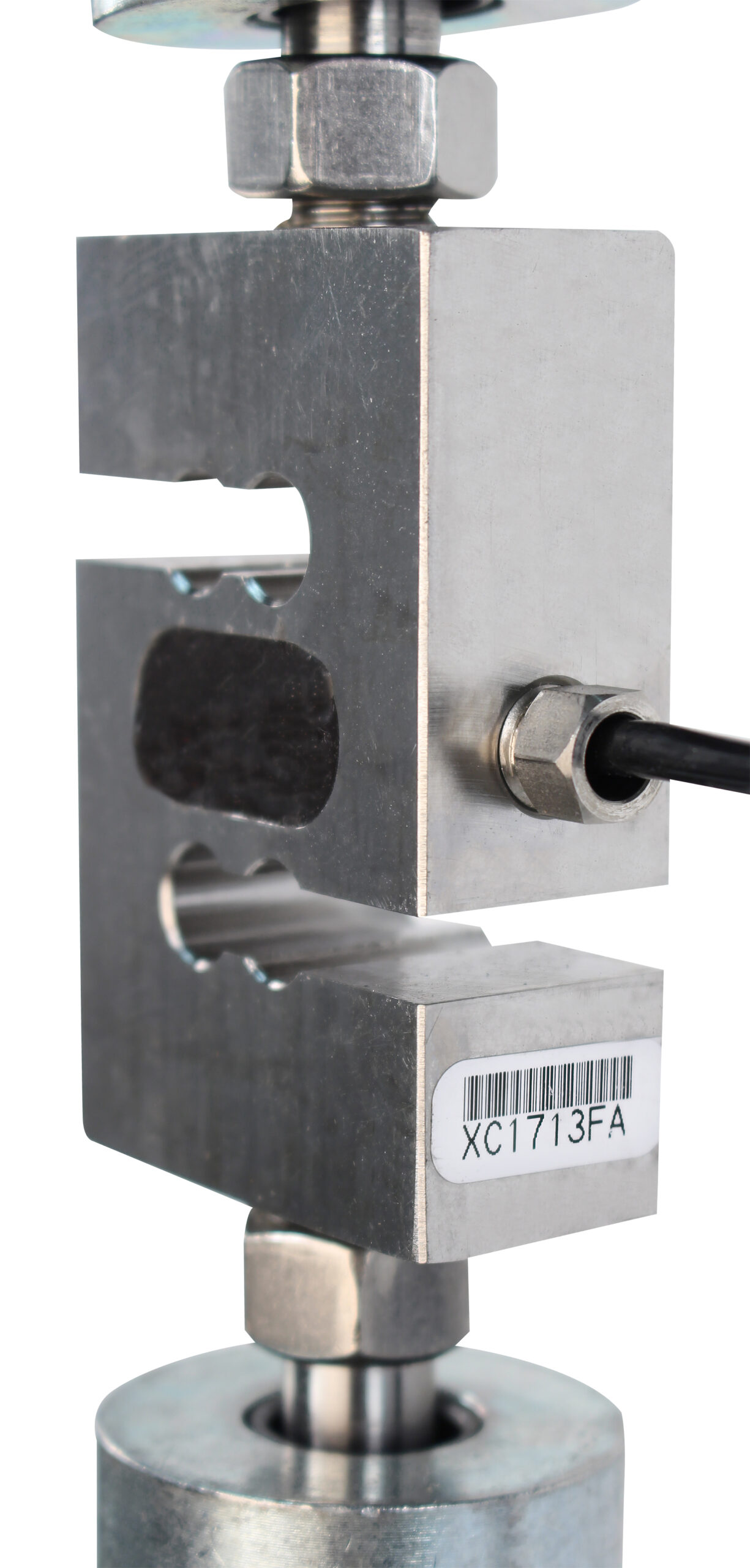

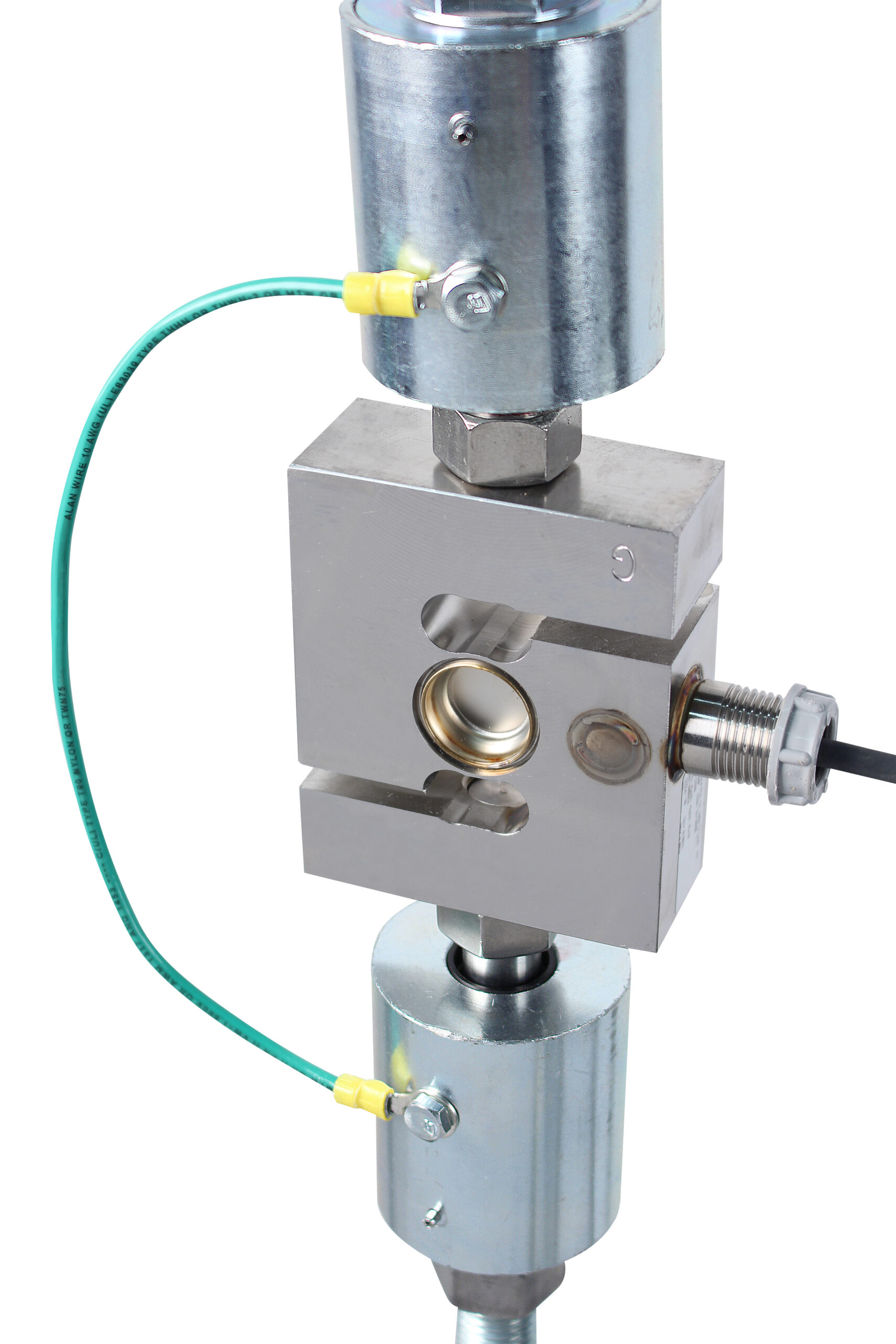

System Capacities Available: Ranging from 750 lb to 80,000 lb Load Cell Certifications: Load cells are NTEP, OIML, and VCAP certified Country of Origin: USA Load Cell Type: Potted sealants or welded cups depending on capacity, environmentally sealed, stainless steel construction (Load cell weight ranges from 250 lb – 20,000 lb) Load Cell Cable Length: 20 ft / 6 m Load Cell Grounding Strap: Included for discharge protection Rod Ends: Ball joint design Teflon Isolators: Prohibit environmental electrical discharge Load Cell Construction: Stainless steel Applications: Suspended tanks and hoppers Junction Box Cable Length to Indicator: 30 ft / 9 m with 9-pin D connector Junction Box Type: Enclosure is NEMA 4, stainless steel with fully gasketed cover (Range ± 10%) Options: Threaded rods, J-bolts, or a combination of both, come as options for linkage systems
