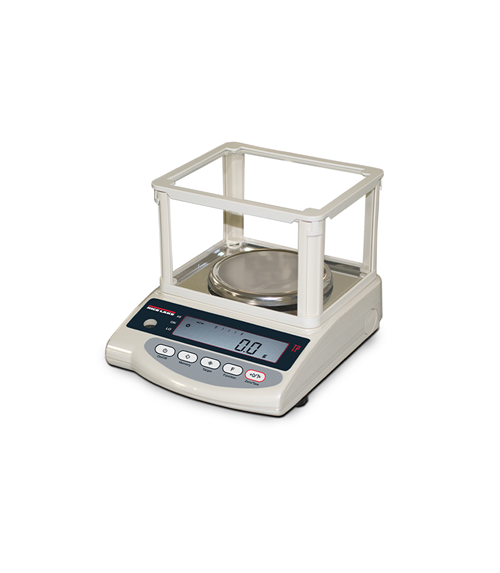

TP Series, Rice Lake TopLoader Balance

$0.00

The simple, straightforward design of Rice Lake’s TP Series balance creates for an effortless user experience. Equipped with the unique Mono-Metal Tuning Fork Sensor (MMTS), this balance series brings remarkable response time and exceptional stability to any setting.

User Friendly:

Functions that are easy to use and understand come standard with the TP Series balance. Enhance productivity with modes such as unit counting and percentage weighing. Adapt to any type of standard with the ability to weigh in 12 different measurement units.

Compact:

The compact and manageable size of the TP Series balance is suitable for even the most limited of space. A footprint smaller than a sheet of paper makes it perfect for crowded work environments.

Responsive:

Each balance performs with incredible sensitivity and stability by relying on its dynamic tuning fork sensor. Plug in and go without waiting for stabilization.
Download product PDF
Categories: ,

Features

  • External weight calibration
  • Large, 16.5 mm-high backlit liquid crystal display (LCD)
  • Mono-metal tuning fork sensor (MMTS) provides quick response and stability 20-step bar graph display
  • One part in 620,000 resolution
  • RS-232 interface for connecting to printer or PC
  • Plastic housing on models <1,000 g
  • Plastic top and die-cast bottom on models >1,000 g

Specifications

Weighing Units:
Carat, Pennyweight, Troy Ounce, Decimal Ounce, Decimal Pound (See technical manual for
complete listing)

Operating Modes:
Weight, Count, Percentage, Limit Function (Checkweighing)

Power:
120 VAC (adapter included)

 Battery Option:
Nickel-cadmium battery, 12-hour run time, 24-hour charge time

RS-232 Baud Rate:
1200/2400/2800/9600; Data bits – 8, connector-DIN 5-pin

Calibration Weight:
TP-220: 200 g
TP-820: 800 g
TP-3200: 3,000 g
TP-8200: 8,000 g
TP-12K: 12,000 g

 Operating Temperature:
41 °F to 95 °F (5 °C to 35 °C)

Est. Weight:
6.2 lb (2.8 kg)

Warranty:
Five-year limited

Return Policy:
Rice Lake standard policy

Options

107244 Balance,TP-220 Rice Lake 220G x 0.001G, 4.7IN Pan, 110VAC
107245 Balance,TP-820 Rice Lake 820G x 0.01G, 6.5 x 5.5 Pan, 110VAC
107246 Balance,TP-3200 Rice Lake, 3200G x 0.01G, 7.0 x 6.2IN Pan, 110VAC
107247 Balance,TP-8200 Rice Lake, 8200G x 0.1G, 7.0 x 6.2IN Pan, 110VAC
107248 Balance,TP-12K Rice Lake 12000G x 0.1G, 7.0 x 6.2IN Pan, 110VAC
