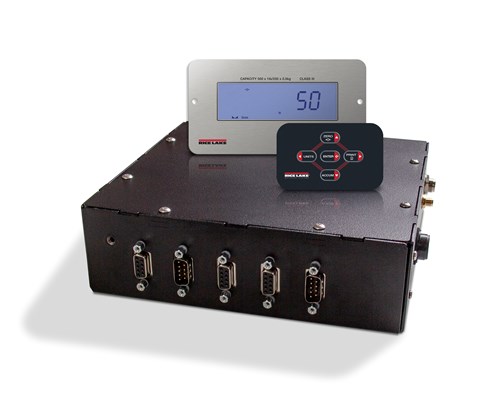

Tracer AV2 Baggage Weighing Instrumentation

$0.00

Tracer AV2 sends an alert to the operator display when preset weight limits are exceeded on the baggage scale. Tracer AV2 systems have a five-button keypad and a durable, stainless steel, LCD display.

Versatile Connectivity

With a serial port, Ethernet port, Wi-Fi and Bluetooth® connectivity available, weight data from Tracer AV2 can be easily transferred to a wide range of peripheral equipment.

Complete Weighing System

Rice Lake offers a variety of baggage scales to accurately weigh bags of any size and fit a variety of spaces. All Rice Lake baggage scales easily pair with Tracer AV2, even when the scales are customized to fit existing airport counters

Download product PDF
Category:

Features

  • Customer display (panel mount)
  • CPU module
  • Supports two displays (customer/agent)
  • Five-button keypad for ticket agent
  • Accumulation function
  • Display indicates overweight bag

Specifications

Power:
115 to 230 VAC to CPU module 50/60 Hz

Power Consumption:
6 W

Excitation Voltage:
5 VDC, 8 x 350 ohm load cells

Analog Signal Input Range:
-0.5 mV/V to 4.5 mV/V

Analog Signal Sensitivity:
1 μV/graduation recommended

A/D Sample Rate:
6.25 to 120 Hz, software selectable

Resolution:
Internal: 8,000,000 counts
Display: 1,000,000

 System Linearity:
Within 0.01% full scale

Communication:
Ethernet TCP/IP
USB Device

Annunciators:
lb/kg

Display:
Stainless steel, panel mounted, seven-digit LCD display, 0.8 in (20 mm) tall digits

Keys/Buttons:
Zero, Units, Accum, Print, Enter

Temperature Range:
14 °F to 104 °F (-10 °C to 40 °C)

 Dimensions:
Panel Mount Display:
7.5 × 4.0 × 1.49 in
(19.05 × 10.16 × 3.79 cm)
External Mount Display:
7.5 × 3.9 × 1.44 in
(19.05 × 9.91 × 3.66 cm)
Panel Mount Keypad:
4.0 × 2.5 × 2.1 in
(10.16 × 6.35 × 5.33 cm)
CPU Enclosure:
7.5 × 7.0 × 2.25 in
without mounting feet
11.13 × 7.0 × 3.06 in
with mounting feet

Weight:
5.25 lb

Warranty:
Two-year limited

Approvals:
NTEP 21-015, Class III/IIIL, 10,000d
Measurement Canada AM-6168C
cULus

Options

202532 Tracer AV2,Single Display Single LCD Panel Mount Display, Single Keypad for Baggage Scale
202531 Tracer AV2,Dual Display Dual LCD Panel Mount Display, Single Keypad for Baggage Scale
207287 Tracer AV2,Dual Display Dual LCD Panel Mount Display, Dual Keypad for Baggage Scale
204452 Tracer AV2,Single Display Single LCD External Mount Display, Single Keypad for Baggage Scale
204451 Tracer AV2,Dual Display Dual LCD External Mount Display, Single Keypad for Baggage Scale.
