Track Scale

$0.00

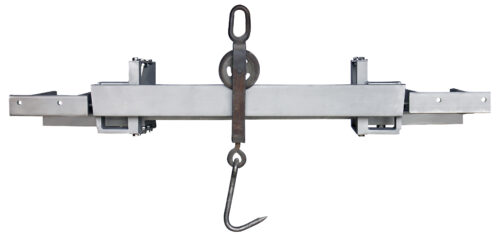

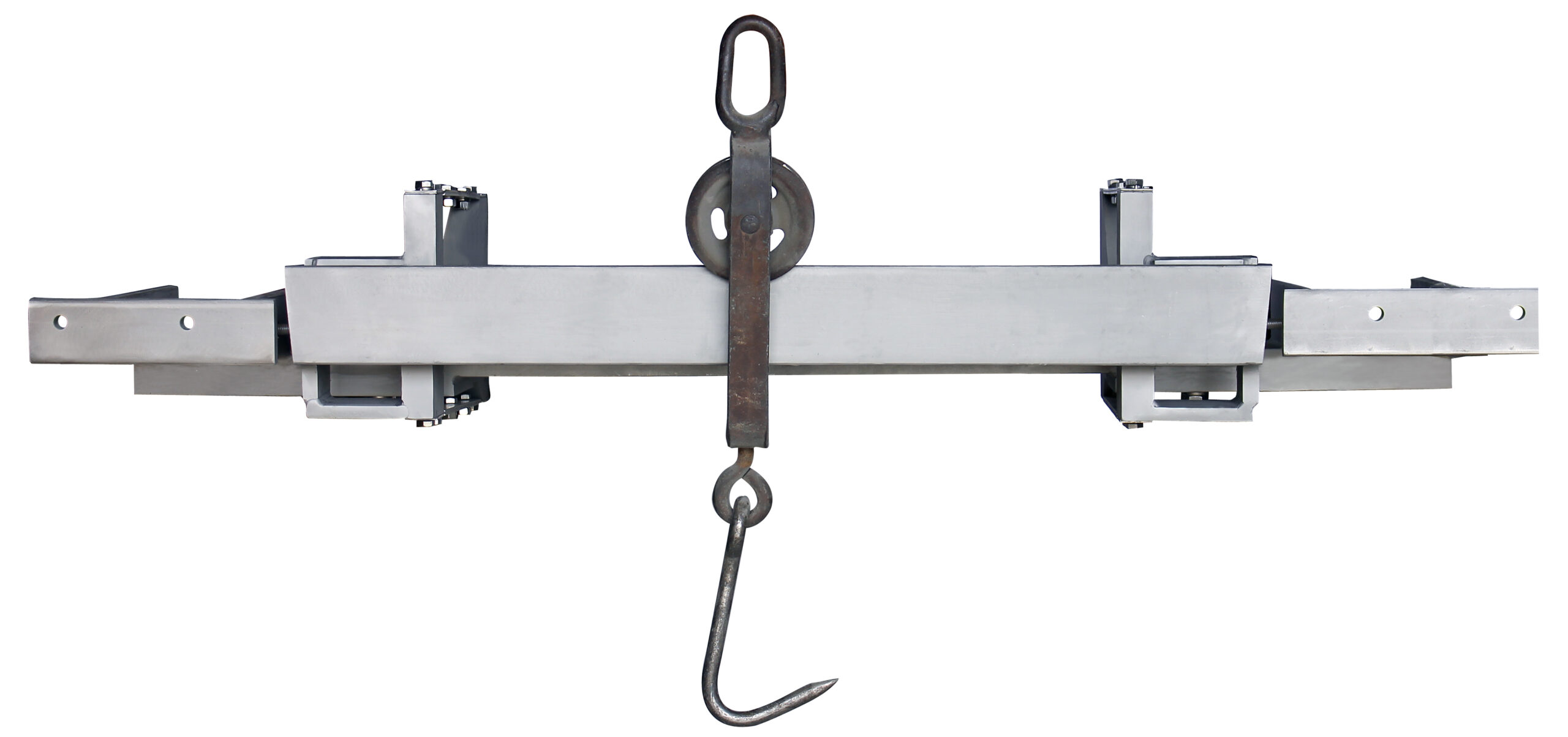

Cardinal Scale’s AB-4 series all-stainless steel overhead track scales are ideal for weighing products being transported by a conventional single overhead track and trolley system. This 2,000-lb x 0.5-lb scale is optimal for weighing products being conveyed in many industries, such as storage warehouses, produce and meat packing plants, or any manufacturing process using this type of conveying system. The AB-4 is available with your choice of three rail lengths – 24 in, 30 in, and 50 in – making it easily adaptable to almost any rail hanger spacing. Its rugged construction ensures years of continuous, trouble-free use. Non-corrosive stainless steel material provides for easy cleaning and washdown. The AB-4 incorporates Cardinal’s stainless steel SB load cells and the wash-down model 205 weight indicator that can be desk or wall mounted. Measurement Canada approved.

Download product PDF

Features

  • 2000-lb Capacity
  • 3 Track Lengths to Choose From
  • Includes Digital Weight Indicator
  • Solid-Mount Load Cell Assembly
  • Stainless Steel Enclosure
  • Stainless Steel Load Cells

Specifications

Capacity: 2,000 lb / 1,200 kg
Graduations: 0.5 lb / 0.2 kg
Operating Temp.: 32.5°F – 122.5°F / 0.5°C – 50.5°C
Power: 115 VAC 60 Hz/230 VAC 50/60 Hz
Scale Construction: Stainless steel
Tare Capacity: Scale capacity
Display: 0.6-in-high LED display with pushbutton tare, gross, tare, and net conversions
Indicator: Cardinal stainless steel washdown, wall or desk mount
Scale Construction: Washdown stainless steel

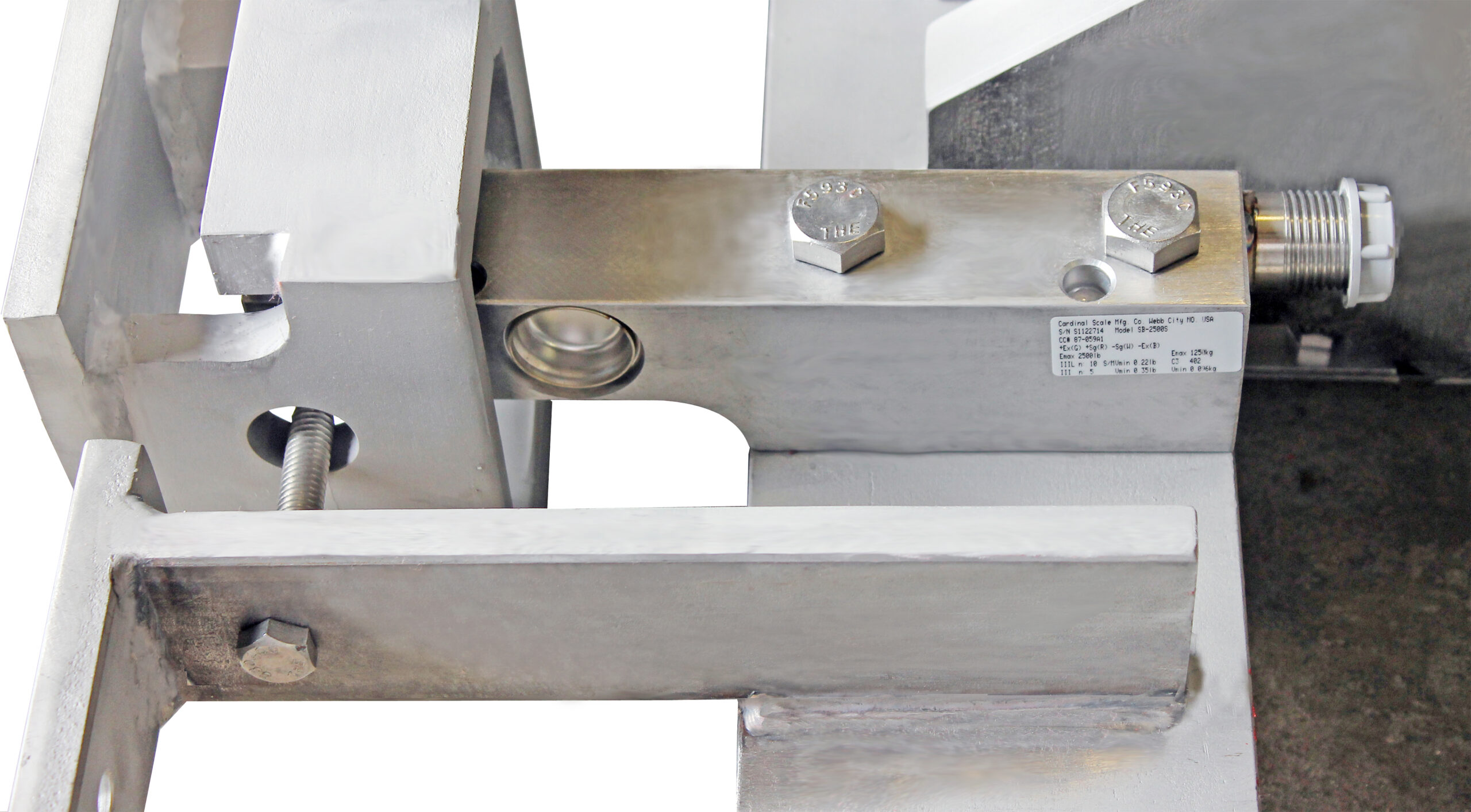

Load Cells: Stainless steel Cardinal SB series shear beam
Indicator Dimensions: 9.2 in W x 7.5 in H x 3.1 in D / 233.0 mm W x 191.0 mm H x 79.0 mm D
Keypad: Color-coded membrane type, 7 keys
Rail Lengths: 24 in, 30 in, 50 in
Certification: Measurement Canada legal for trade

Models

AB-4-CA Overhead Track Scale, 2′, 205 Indicator Call For Pricing
AB-4-CB Overhead Track Scale, 2′ 6″, 205 Indicator Call For Pricing
AB-4-CC Overhead Track Scale, 4′ 2″, 205 Indicator Call For Pricing
