Features

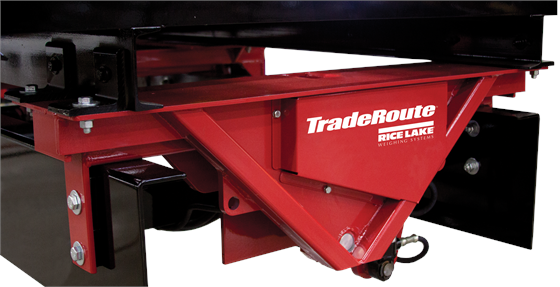

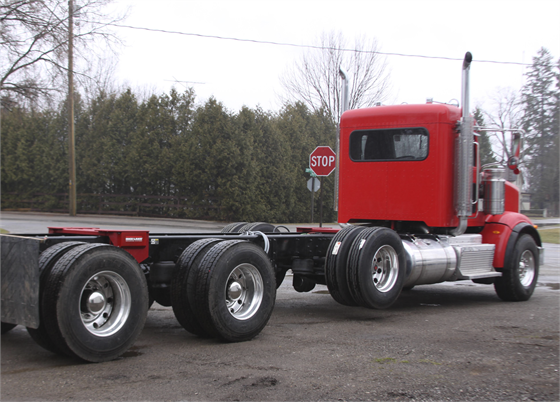

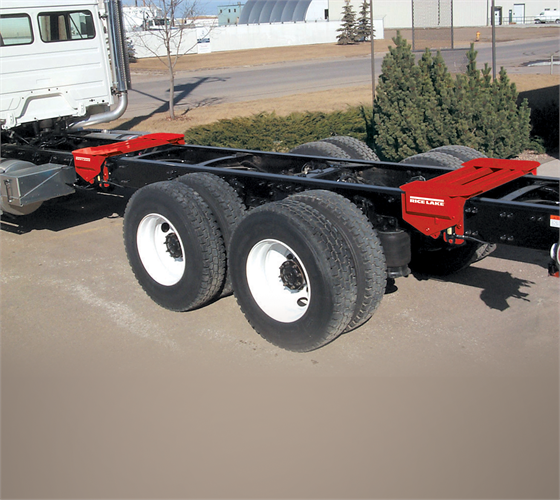

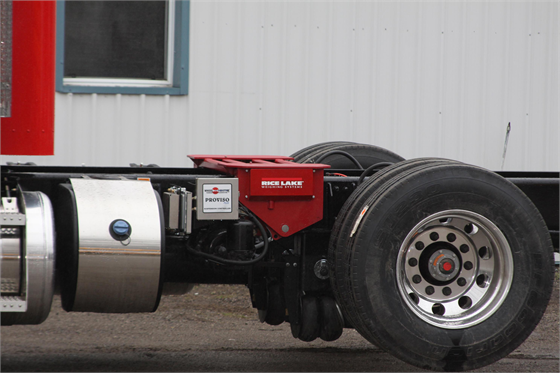

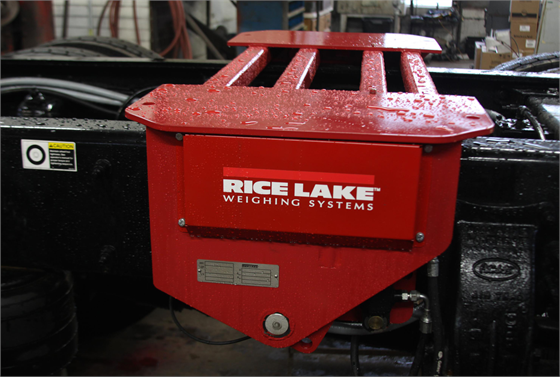

Legal for Trade Onboard System Includes:
- 3 or 4 point onboard system RL2000B load cell with 20 ft cable, IP67
- 80 ft conduit cable
- Magnetic transport alarm sensor with 15 ft cable
- JB4SS junction box
- Hydraulic line locks and hoses
- 920i Onboard Weigh Center
Hydraulic pump not included
Minimum 3,000 PSI recommended to maintain 2,200 PSI during lift
920i Onboard Weigh Center:
- Epson TM-U295 printer with splash shield
- Pre-installed 30 ft power cable
- Pre-installed 30 ft load cell cable
- Pre-installed inclinometer
- Transport alarm LEDs
- Power switch
- Start/End switch
- Waterproof enclosure
- Vibration mounts
Mounting bracket to body not included
920i USB Universal with Onboard Software:
- RS-232 port for connecting to ticket printer
- Standard onboard software
- USB interface board only
USB Interface Functions:
- Available upon special request using a Type A sealed connector
- USB interface card on Port 2
- Supports weigh mode and configuration mode functions
- Supports upload of databases and 920i configuration file
- Supports download of databases, 920i configuration file, iRite, COD file and firmware file
- Sanity checks for command errors
- Create STD database files
Flash Drives:
- Supports USB 2.0 (optional)
- Create subdirectories by unit ID and database name
- Use the root directory for generic files
Approvals:
- NTEP CC 99-091
- Measurement Canada AM-4847
Specifications
TradeRoute HL Series 920i USB Indicator Specifications
Power:
Line voltages: 115 or 230 VAC, 9-36 VDC, +/- 6, 25 Watt input
Frequency: 50 or 60 Hz
Power consumption: 340 mA, maximum at 115 VAC (26 W) 240 mA at 230 VAC (26 W)
Excitation Voltage:
10 ? VDC, 16 x 350 ? or 32 x 700 ? load cells per A/D card
Analog Signal Input Range:
-10 mV to +45 mV
Analog Signal Sensitivity:
0.3 ?V/graduation minimum at 7.5 Hz
1.0 ?V/graduation typical at 120 Hz
4.0 ?V/graduation typical at 960 Hz
A/D Sample Rate:
7.5 to 960 Hz, software selectable
Resolution:
Internal resolution: 8 million counts
Weight display resolution: 9,999,999
System Linearity:
? 0.01% full scale
Digital I/O:
Six I/O channels on CPU board; optional 24-channel
I/O expansion boards available
Circuit Protection:
RFI, EMI, ESD protection
Serial Ports:
Four ports on CPU board support up to 115,200 bps; optional dual-channel serial expansion boards available
Port 1: Full duplex RS-232
Port 2: USB Type A and Type B connectors
Port 3: Full duplex RS-232, 20 mA output
Port 4: Full duplex RS-232, 2-wire RS-485, 20 mA output
Display (W x H):
4.6 x 3.4 in (116 W x 86 mm H), 320 x 240 pixel VGA Liquid Crystal Display (LCD) module with adjustable contrast
Keyboard:
27-key membrane panel, tactile feel
Operating Temperature:
Legal: 14?F to 104?F (-10?C to 40?C)
Industrial: 14?F to 122?F (-10?C to 50?C)
Weight:
45 lb, weigh center
Rating/Material:
NEMA Type 4X/IP66, stainless steel
Indicator Approvals:
Indicator Approvals: NTEP CC 01-088, Class III/IIIL 10,000d Measurement Canada AM-5426, Class III/III HD 10,000d
OIML UK 2658, 6,000/10,000
CE marked
UL & C-UL listed (Universal, Deep and Wall Mount Enclosure)
Warranty
Two-year limited warranty
TradeRoute HL Series Specifications: Epson TM-U295 Printer Specifications
Print Speed:
1.9 to 2.3 lines per second (5 x 7 character, 3 dot line spacing)
Column Capacity:
35/42 columns
Characters Per Line:
35 standard font
Print Area:
2.59 in W (65.8 mm W)
Character Formation:
5 x 7 and 7 x 7 dot matrix
Character Height:
0.11 standard font
Print Head Life:
Approximately 100 million strokes/pin
Form Thickness:
Single-ply – 0.003 in to 0.009 in
Copy paper – 0.003 in to 0.014 in
Ribbon:
Cassette-type purple ribbon. Ribbon life is approximately 1.5 million characters (continuous prints). Black ink also available.
Approvals:
UL listed, CSA certified, CE marked
Warranty:
One-year limited warranty (includes print head)
TradeRoute HL Series Specifications: JB4SS Junction Box Specifications
Cable Fittings:
PN 88956:
(4) PG7 0.118-0.255 strain relief
(2) PG11 0.197-0.394 strain relief
(1) PreVent? breather vent
PN 107700:
(4) PG9 0.138-0.315 strain relief
(2) PG11 0.197-0.394 strain relief
(1) PreVent? breather vent
Enclosure:
Stainless steel NEMA Type 4X
Connectors:
Spring clamp screwless, 12-28 AWG
Trimming:
ndividual cell, signal trim, ranges zero trim 12.49 K-100 K ohms with 2.49 K ohms isolation resistors
Potentiometers:
100 K ohms, 25 turn cermet
Circuit Board:
3.8. x 2.3 in. (96.5 x 58.4 mm), with conformal coating
Warranty:
One-year limited warranty
TradeRoute HL Series RL2000B S-Beam Load Cell Specifications
Full Scale Output:
3.0 mV/V
Output Resistance:
350 (? 3) ohms
Input Resistance:
385 (? 5) ohms
Material/Finish:
High-alloy steel, nickel plated
Temperature:
Compensated range
14?F to 104?F (-10?C to 40?C)
Seal Type:
Environmentally sealed, IP67
Safe Overload:
150% Full scale
Rated Excitation:
10 V DC (15 V maximum)
Nonlinearity:
0.03% Full scale
Hysteresis:
0.02% Full scale
Insulation Resistance:
5000 megohms
Cable Length:
20 ft (6.1 m)
Cable Diameter:
0.200 polyurethane jacket
Cable Color Code:
Red……………………..+ Excitation
Black……………………? Excitation
Green…………………..+ Signal
White…………………..? Signal
Warranty:
Two-year limited warranty
Approvals:
FM approved
NTEP approved
CE marked
