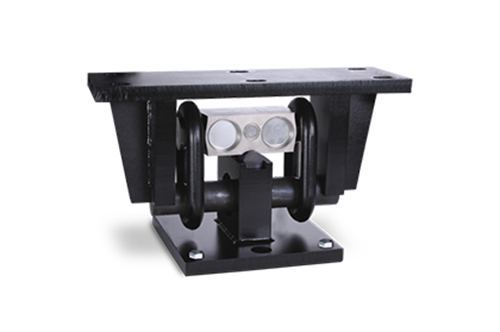

Translink™ Parallel Link Truck Scale Assembly

$0.00

Providing Solutions with a Variety of Load Cells

The Translink parallel link truck scale assembly is designed for use with Rice Lake Weighing Systems’ RL75223 and RL75040, VPG Revere 5223 or VPG Sensortronics’ 65040A load cells. This design allows the scale platform to move freely in all directions in a horizontal plane while causing the platform to self-center because of the pendulous action of the links. The unique parallel link design eliminates the need for costly and troublesome checkrods. Simply install platform bumpers and forget about over-travel. This mount is ideal for heavy-capacity weighbridges.

Applications

  • Truck scale mount
  • Heavy-capacity horizontal tanks
Download product PDF
Categories: ,

Features

Translink™ Parallel Link Truck Scale Assembly

  • Capacities (per module): 25,000 to 100,000 lb
  • Painted mild steel construction
  • Center-supported, end-loaded double-ended shear beam design
  • Free movement in all directions in the horizontal plane with virtually no friction
  • Links provide optimal loading conditions for the cell
  • Completely self-centering
  • Requires no check rods
  • Utilizes cells with 3 mV/V output
  • Compatible with Rice Lake RL75223 and RL75040, VPG® Revere 5223 and VPG® Sensortronics 65040A load cells

Specifications

Rated Capacity C H H1 H2 L L1 L2 L3 L4 L5 W W1 W2 W3 W4 W5
lb/in
50,000 to 100,000 (RL75223, 5223) 1.50 12.93 1.00 1.00 22.50 1.50 1.75 9.50 11.75 5.88 7.75 0.91 5.25 1.25 9.25 11.75
25,000 to 40,000 (RL75040A, 65040A) 1.50 9.88 1.00 1.00 18.50 1.50 1.75 7.50 11.75 5.88 7.75 0.91 5.25 1.25 9.25 11.75
50,000 to 75,000 (RL75040A, 65040A) 1.50 12.82 1.00 1.00 22.50 1.50 1.75 9.50 11.75 5.88 7.75 0.91 5.25 1.25 9.25 11.75
