Tripp-Lite LC1200 Power Regulator

$0.00

Download product PDF
Category:

Features

  • Maintains usable 120 V nominal output during brownouts as low as 87 V and overvoltages as high as 140 V
  • 1,200 watts output power rating supports heavy 120 V loads up to 10 amps
  • Network grade surge suppression rated at 1,200 joules
  • Complete EMI/RFI noise filtering

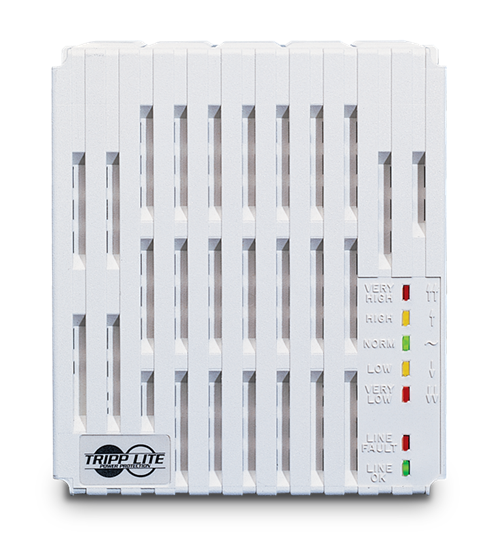

  • Seven diagnostic LEDs indicate input voltage levels, surge suppression status and line fault conditions
  • Four protected NEMA Type 5-15R outlets
  • Six-foot AC power cord with standard NEMA 5-15P input plug

Specifications

Output Wattage (continuous):
1,200

Voltage/Frequency:
120/60

Cordset:
6 ft

AC Receptacles:
Four NEMA 5-15R

LED Indicators:
Seven (very high voltage, high voltage, normal voltage, low voltage, very low voltage, line fault, line OK)

Surge Energy Rating (Joules):
1,200

High Frequency Noise Suppression (@ 1 MHZ):
80 dB

Dimensions:
(L × W × H)
6.75 × 5.75 × 6.75 in

Warranty:
One-year limited

NOTE:
LC models have isolated filter banks. Each duplex outlet pair is filtered from the rest to prevent interference between connected equipment.
