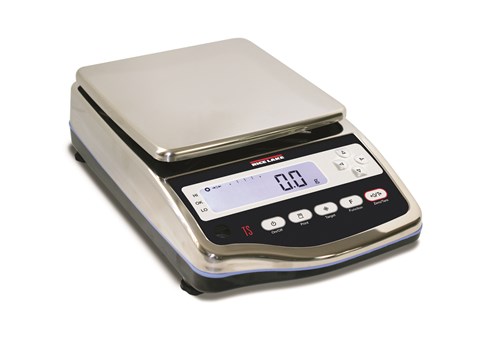

TS Series, Rice Lake Toploader Washdown Balance

$0.00

Form meets Function

The sleek-looking stainless steel housing of Rice Lake’s TS Series is more than just attractive. This mirror finish is a barrier against potentially destructive elements. For work environments where anything can happen, trust in a balance that delivers performance inside and out.

IP65 Design

The polished finish of the TS Series’ stainless steel housing offers exceptional durability. An IP65 rating means this balance protects against the ingress of dust and liquids into electronic components that can happen from normal spills and splashes. The smooth, continuous lines of the TS design make cleanup effortless.

Rapid Response

Unique tuning fork technology provides a high-speed response time, with stable and reliable results. No more waiting for stabilization or warm up, simply plug in and go.

RS-232 Interface

The TS Series offers incredibly fast output compared to similar models. The ability to interface with a PC and other equipment is invaluable for creating compliance records and data storage.

Download product PDF
Categories: , , , , , , ,

Features

  • Stainless steel, IP65 top housing
  • Large, 18 mm liquid crystal display (LCD) with blacklight
  • Selectable modes
  • 13 units of measurement
  • Mono-metal tuning fork sensor (MMTS) provides quick response and stability
  • Washdown with IP65 rating
  • 115 VAC adapter included (230 VAC optional)
  • Semi-automatic calibration, external weight
  • RS-232 interface for connecting to printer or PC
  • Options
    • Battery holder
    • Underweigh hook
    • Waterproof RS-232 cable

Specifications

Weighing Units:
Carat, Pennyweight, Troy Ounce, Decimal Ounce, Decimal Pound (See technical manual for complete listing)Operating Modes:
Weight, Count, Percentage, Limit Function (Checkweighing)

Power:
120 VAC (adapter included)

 Battery Option:
Nickel-cadmium battery, 12-hour run time, 24-hour charge timeRS-232 Baud Rate:
1200/2400/2800/9600;
Data bits-8, Connector-DIN 5-pin

Calibration Weight:
TP-620: 600 g
TP-6200: 6,000 g
TP-8200: 8,000 g

 Operating Temperature:
41 °F to 95 °F (5 °C to 35 °C)Est. Weight:
6.2 lb (2.8 kg)

Warranty:
Five-year limited

Return Policy:
Rice Lake standard policy
