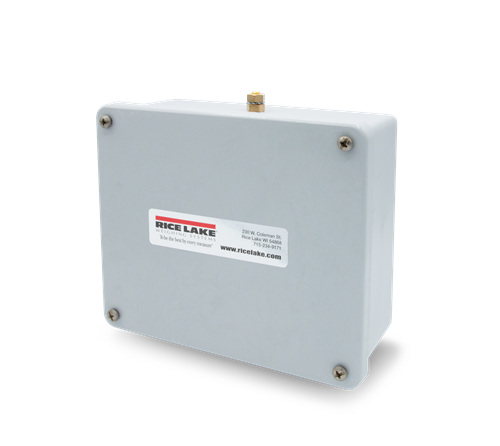

UJB3T6 DC Transient Protector

$0.00

Download product PDF
Categories: ,

Features

Protects load cells from voltage transients
Compatible with signals down to 1 μV per grad
Factory serviceable
Full six-wire with shield protection
#6 SEMS screw type; accepts spade lugs, tinned leads or bare wires up to #12 AWG
Up to eight parallel or summed load cells
Applications
Installations exposed to significant transients
Protects serial communication lines

Specifications

Protection Type:
Six-wire type with separate shield

Maximum Excitation Voltage:
20 VDC or 20 VAC

Clamping Voltage:
75 VDC or 75 VAC

Clamping Time:
75 VDC Stages <100 nanoseconds typical Peak Surge Currents: 75 VDC Stage, 5,000 amps Maximum Serial Transmission Rate: 50K baud Series Resistance: 0.219 ohm typical Series Inductance: 110 µH typical Grounding: 20 ft insulated #10 AWG wire Cable Fitting: Two nylon strain relief for 0.079 to 0.236 in diameter cable Enclosure: NEMA Type 4X, maximum 40 psi washdown Fiberglass Reinforced Polyester (FRP) Temperature Range: Operating: 4 °F to 104 °F (-10 °C to 40 °C) Circuit Board: 6.75 × 4.75 in with anti-fungal coating Dimensions: (L × W × H) 7.63 × 6.63 × 3.25 in Warranty: One-year limited
