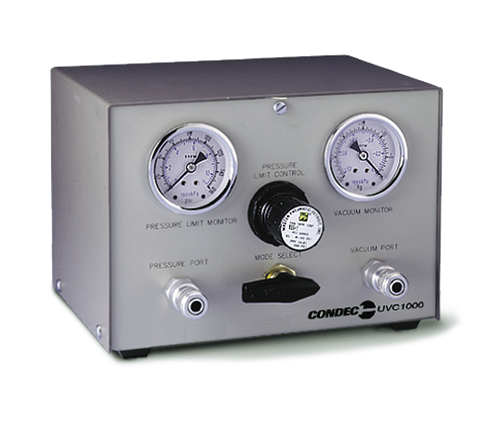

Rugged, versatile, portable—the UVC1000 vacuum generator/pressure controller packs a lot of performance into one affordable instrument. Our 19-inch rack-mount UVC1010 is great for applications where portability is not as important.
Complete mechanical operation allows operators to utilize the UVC1000 pressure controller in areas that are off limits to vacuum pumps. This efficient pressure controller unit contains a built-in vacuum converter that works with existing shop air to power up to 29 inches of mercury vacuum. As a result, the UVC1000 pressure controller eliminates fumes and vibrations that are dangerous in nuclear power plants, oil refineries and other hazardous environments.
Regardless of the location, the UVC1000 vacuum generator and pressure controller is convenient for on-the-go operation. Its lightweight structure and compact design provide quick and convenient performance. This versatile unit can also be used to control and regulate positive pressure.
The UVC1000/UVC1010 is the ideal source for vacuum and pressure control in an endless number of applications and locations.
Applications
Pressure Media:
Filtered shop air
Pressure Input:
100-160 psi*, 4.2 SCFM, AN-4 37° flared tube setting
Pressure Limit Monitor Gauge:
Size: Two-inch diameter
Range: 0-160 psi
Vacuum Monitor Gauge:
Vacuum Monitor Gauge:
Size: Two-inch diameter
Regulator:
Aluminum/brass 0-100 psi output pressure
UVC1000 Case:
16 gauge painted steel
Pressure/Vacuum Selector:
Brass
Fittings:
Brass, two quick-disconnect male coupling to 1/4 inch female NPT
Internal Tubing: 250 psi rated tubing
Weight:
UVC1000: 6.6 lb (2.9 kg)
UVC1010: Approximately 7 lb (3 kg)
* At input pressures less than 100 psi, vacuum level may be less than 29 inches Hg
