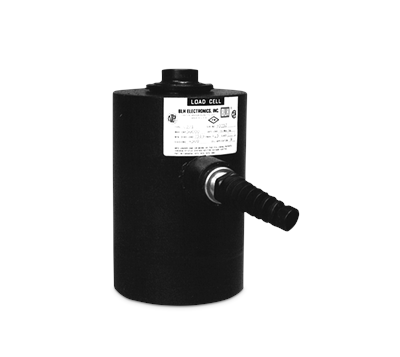

VPG BLH C2P1 Alloy Steel, Compression Canister Load Cell

$0.00

The VPG BLH C2P1 compression canister with a single-column design and low deflection delivers trouble-free operation. The high-alloy steel, epoxy coating makes the C2P1 ideal for use in harsh environments.

Download product PDF

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (? 3.5) ohm

Input Resistance:
350 (? 3.5) ohm

Material/Finish:
High-alloy steel, epoxy coated

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0?F to 150?F/-18?C to 65?C

Seal Type:
NEMA Type 6 Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5- 10 VDC (20 V maximum)

Nonlinearity:
0.03% Full scale

Hysteresis:
0.02% Full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
20,000 lb-30,000 lb=0.0075 in (0.191 mm)
50,000 lb=0.0065 in (0.165 mm) 100,000 lb=0.0075 in?(0.191 mm)
200,000 lb=0.0070 in (0.178 mm)
300,000 lb=0.012 in (0.305 mm)

Cable Length:
10 ft or 35 ft (3.0 m or 10.7 m)

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
White …………………….+ Signal
Red ………………….? Signal
Yellow ………………….? Shield

Warranty:
Three-year limited warranty

Approvals:
NTEP
FM

Models

21625 Load Cell,CSR C2P1-20K 20,000lb 10ft 2mv/v 350 Ohm NTEP IIIL 4.5M FM EW IP67 Epoxy HS C BLH
21626 Load Cell,CSR C2P1-50K 50,000lb 10ft 2mv/v 350 Ohm NTEP IIIL 4.5M FM EW IP67 Epoxy HS C BLH
21627 Load Cell,CSR C2P1-100K 100,000lb 10ft 2mv/v 350 Ohm NTEP IIIL 4.5M FM EW IP67 Epoxy HS C BLH
21628 Load Cell,CSR C2P1-200K 200,000lb 10ft 2mv/v 350 Ohm NTEP IIIL 4.5M FM EW IP67 Epoxy HS C BLH
