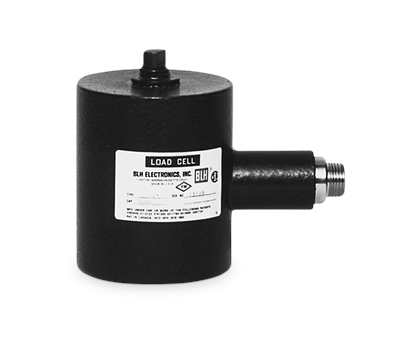

VPG BLH C3P1 Alloy Steel, Compression Canister Load Cell

$0.00

The VPG BLH C3P1 compression canister load cell with a single-column, environmentally protected design provides low deflection and trouble-free operation.

Download product PDF

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (? 3.5) ohm

Input Resistance:
350 (? 3.5) ohm

Material/Finish:
High-alloy steel, epoxy coated

Temperature:
Operating range
0? F to 150? F (-18? C to 65? C)

Seal Type:
NEMA Type 6 Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (20 V maximum)

Nonlinearity:
0.05% Full scale

Hysteresis:
500 lb=0.05% full scale
1,000 lb-10,000 lb=0.02% full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
500 lb=0.007 in (0.18 mm)
1,000 lb=0.006 in (0.15 mm)
2,000-3,000 lb=0.005 in (0.13 mm)
5,000 lb=0.007 in (0.18 mm)
10,000 lb=0.005 in (0.13 mm)

Cable Length:
35 ft (10.7 m)

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
Red …………………….+ Signal
White ………………….? Signal
Yellow ………………….? Shield

Warranty:
Three-year limited warranty

Approvals:
FM

Models

17672 Load Cell,CSR C3P1-500 500lb 35ft 3mv/v 350 Ohm FM EW IP67 Epoxy HS BLH
17673 Load Cell,CSR C3P1-1K 1000lb 35ft 3mv/v 350 Ohm FM EW IP67 Epoxy HS BLH
17674 Load Cell,CSR C3P1-2K 2000lb 35ft 3mv/v 350 Ohm FM EW IP67 Epoxy HS BLH
17675 Load Cell,CSR C3P1-3K 3000lb 35ft 3mv/v 350 Ohm FM EW IP67 Epoxy HS BLH
17676 Load Cell,CSR C3P1-5K 5000lb 35ft 3mv/v 350 Ohm FM EW IP67 Epoxy HS BLH
17677 Load Cell,CSR C3P1-10K 10,000lb 35ft 3mv/v 350 Ohm FM EW IP67 Epoxy HS BLH
