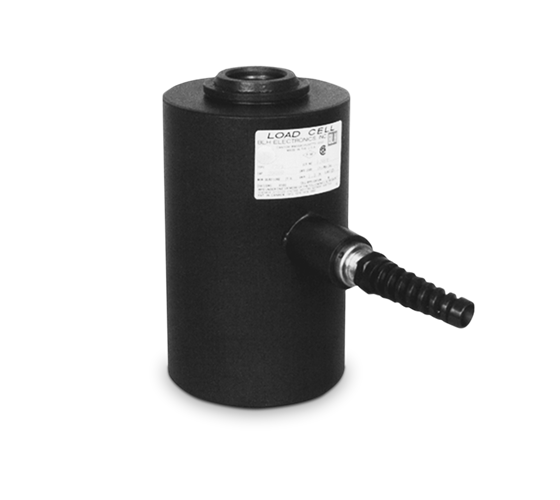

VPG BLH T2P1 Alloy Steel, Tension Canister Load Cell
$0.00
The VPG BLH T2P1 tension canister load cell with a single-column, environmentally protected design provides low deflection and trouble-free operation.
Download product PDF
Specifications
Full Scale Output:
2.0 mV/V
Output Resistance:
350 (? 3.5) ohm
Input Resistance:
350 (? 3.5) ohm
Material/Finish:
High-alloy steel, epoxy coated
Temperature:
Operating range
0? F to 150? F (-18? C to 65? C)
Seal Type:
Environmentally sealed, IP67
Safe Overload:
150% full scale
Rated Excitation:
5- 10 V AC/DC (20 V maximum)
Combined Error:
?0.03% full scale
Repeatability:
0.02% Full scale
Insulation Resistance:
5,000 megohms
Deflection at Capacity:
20,000 lb=0.0075 in (0.191 mm)
50,000 lb=0.0100 in (0.254 mm
Cable Length:
35 ft (10.7 m)
Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
White …………………….+ Signal
Red ………………….? Signal
Yellow ………………….? Shield
Warranty:
Three-year limited warranty
Approvals:
FM
Models
| 17660 |
Load Cell,CSR T2P1-20K 20,000lb 35ft 2mv/v 350 Ohm FM EW Epoxy HS Tension BLH |
|
|
| 17661 |
Load Cell,CSR T2P1-50K 50,000lb 35ft 2mv/v 350 Ohm FM EW Epoxy HS Tension BLH |
