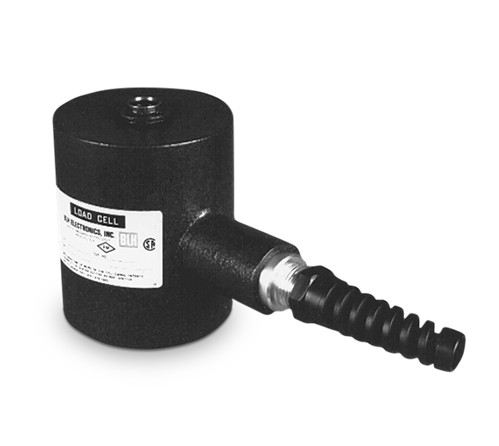

VPG BLH T3P1 Alloy Steel, Tension Canister Load Cell

$0.00

Features low deflection and trouble-free operation. Single-column, environmentally protected design with high-alloy steel and epoxy-coated construction for optimal performance in harsh environments. Designed for high-capacity tension operations. Capacities of 500 lb and 10,000 lb. Complete with 35 ft of load cell cable.

Download product PDF
Categories: , , ,

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
350 ohm (+/- 3.5)

Input Resistance:
350 ohm (+/- 3.5)

Material/Finish:
High-alloy steel, epoxy coated

Temperature:
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

 Rated Excitation:
5 to 10 V DC (20 V maximum)

Nonlinearity:
0.05% full scale

Hysteresis:
500 lb: 0.05% full scale
1,000 to 10,000 lb: 0.02% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
500 lb: 0.007 in
1,000 lb: 0.006 in
2,000 lb: 0.005 in
3,000 lb: 0.005 in
5,000 lb: 0.007 in
10,000 lb: 0.005 in

 Cable Length:
35 ft

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Warranty:
Three-year limited

Approvals:
FM

Options

17654 Load Cell,CSR T3P1-500 500lb 35ft 3mv/v 350 Ohm FM EW Epoxy HS Tension BLH
17655 Load Cell,CSR T3P1-1K 1000lb 35ft 3mv/v 350 Ohm FM EW Epoxy HS Tension BLH
17656 Load Cell,CSR T3P1-2K 2000lb 35ft 3mv/v 350 Ohm FM EW Epoxy HS Tension BLH
17657 Load Cell,CSR T3P1-3K 3000lb 35ft 3mv/v 350 Ohm FM EW Epoxy HS Tension BLH
17658 Load Cell,CSR T3P1-5K 5000lb 35ft 3mv/v 350 Ohm FM EW Epoxy HS Tension BLH
17659 Load Cell,CSR T3P1-10K 10,000lb 35ft 3mv/v 350 Ohm FM EW Epoxy HS Tension BLH
