VPG Celtron CSB Alloy Steel, Double-Ended, Shear Beam Load Cell

$0.00

This product is being discontinued, limited quantities available.

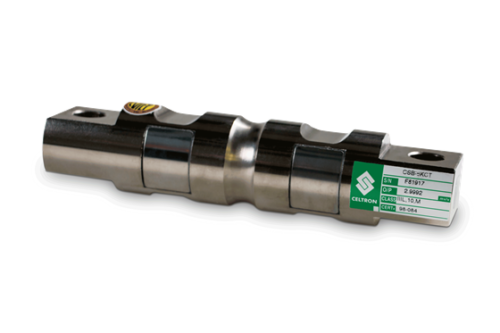

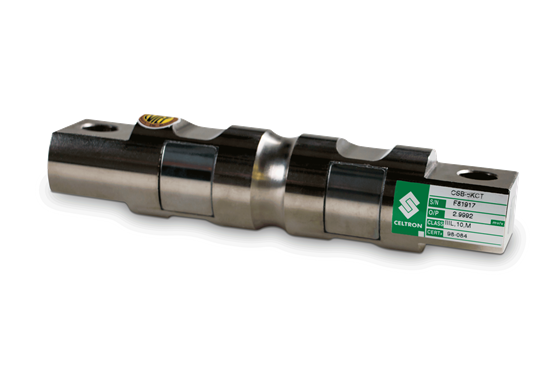

This double-ended beam with center loading is an optional replacement for many popular cells in the industry. Designed for truck, tank and hopper applications. Capacities range from 5,000 lb to 150,000 lb (2,268.0 kg to 68,040 kg). Complete with 30 ft (9.1 m) of load cell cable.

Download product PDF

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (± 5) ohm

Input Resistance:
770 (± 10) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14°F to 104°F (-10°C to 40°C)
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Non-Repeatability:
0.02% full scale

Insulation Resistance:
5,000 megohms

Cable Length:
30 ft (9.1 m)

Cable Diameter:
0.200 polyurethane jacket (5,000 lb)

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited warranty

Approvals:
cFMus
NTEP

Models

42120 Load Cell,DEB CSB-5k 5000lb 30ft Celtron 3mV/V 700 OHM WW NTEP IIIL 10M FM IP67
