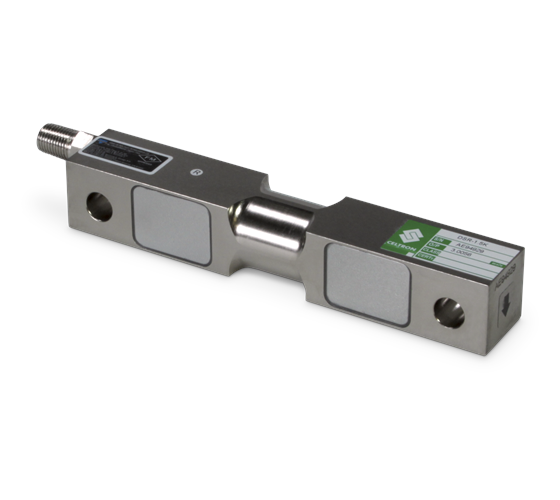

VPG Celtron DSR Alloy Steel, Double-Ended Beam Load Cell

$0.00

Double-ended beam with center loading. Designed for tank, hopper and silo applications. Capacities range from 1,000 lb to 75,000 lb (453.6 kg to 34,019.5 kg). Complete with 25 ft (7.6 m) of load cell cable.

Download product PDF

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (± 5) ohm

Input Resistance:
770 (± 10) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Nonlinearity:
0.03% full scale

Hysteresis:
0.02% full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
1,000 lb-3,000 lb=0.01 in (0.3 mm)
5,000 lb=0.015 in (0.4 mm)
10,000 lb-20,000 lb=0.022 in (0.6 mm)
25,000 lb=0.036 in (0.9 mm)
50,000 lb=0.052 in (1.3 mm)
75,000 lb=0.07 in (1.8 mm)

Cable Length:
25 ft (7.6 m)

Cable Diameter:
0.200 polyurethane jacket (1,000 lb-25,000 lb)
0.305 polyurethane jacket (50,000 lb-75,000 lb)

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited warranty

Approvals:
cFMus

Models

30080 Load Cell,DEB DSR-1K 1,000 lb 25ft Celtron 3mV/V 700 OHM WW IP67
30081 Load Cell,DEB DSR-1.5K- 1,500 lb 25ft Celtron 3mV/V 700 OHM WW IP67
30088 Load Cell,DEB DSR-2K 2,000 lb 25ft Celtron 3mV/V 700 OHM WW IP67
30089 Load Cell,DEB DSR-2.5K 2,500 lb 25ft 3mV/V 700 OHM WW IP67
30091 Load Cell,DEB DSR-3K 3,000 lb 25ft 3mV/V 700 OHM WW IP67
30094 Load Cell,DEB DSR-5K 5,000 lb 25ft Celtron 3mV/V 700 OHM WW IP67
30095 Load Cell,DEB DSR-10K 10,000 lb 25ft Celtron 3mV/V 700 OHM WW IP67
30096 Load Cell,DEB DSR-15K 15,000 lb 25ft Celtron 3mV/V 700 OHM WW IP67
30097 Load Cell,DEB DSR-20K 20,000 lb 25ft Celtron 3mV/V 700 OHM WW IP67
30098 Load Cell,DEB DSR-25K 25,000 lb 25ft Celtron 3mV/V 700 OHM WW IP67
30099 Load Cell,DEB DSR-50K 50,000 lb 25ft Celtron 3mV/V 700 OHM WW IP67
75,000 lb with Square Center
30100 Load Cell,DEB DSR-75K 75,000 lb 25ft 3mV/V 700 OHM WW IP67 List price: $825.0
