VPG Celtron DSR-HSS Stainless Steel, Double-Ended Beam Load Cell

$0.00

This product is being discontinued, limited quantities available.

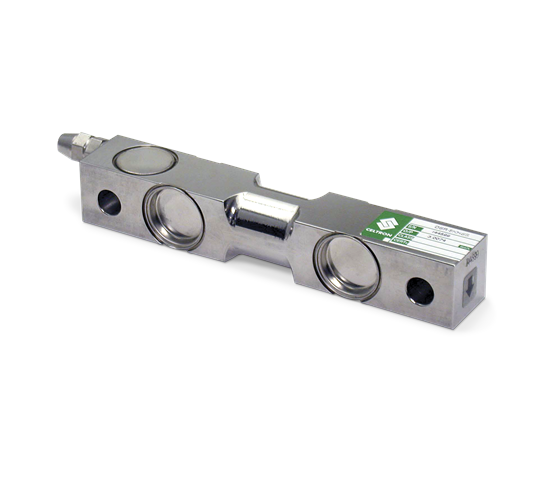

A new-center loaded, double-ended beam in stainless steel with welded gauge covers. Available capacities range from 1,000 lb to 75,000 lb (453.6 kg to 34,019.5 kg). This load cell is ideal for tank, hopper and silo applications, has a welded-seal and comes with 25 ft (7.6 m) of load cell cable.

Download product PDF

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (± 5) ohm

Input Resistance:
770 (± 10) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.07% full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
1,000 lb-3,000 lb=0.01 in (0.03 mm)
5,000 lb=0.015 in (0.4 mm)
10,000 lb-20,000 lb=0.022 in (0.6 mm)
25,000 lb=0.036 in (0.9 mm)
50,000 lb=0.052 in (3.1 mm

Cable Length:
25 ft (7.6 m)

Cable Diameter:
0.200 polyurethane jacket(1,000 lb)

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited warranty

Approvals:
cFMus

Models

76544 Load Cell,DEB DSR-1K-HSS 1000lb 25ft Celtron 3 mV/V 700 OHM WW WS SST IP67
