VPG Celtron HBB Stainless Steel, Single-Ended Beam Load Cell

$0.00

This product is being discontinued, limited quantities available.

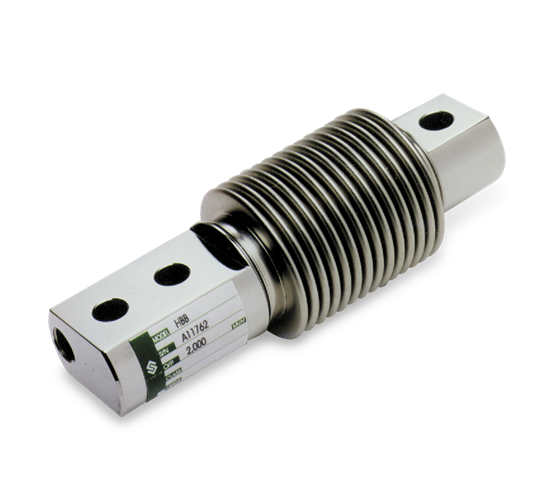

The HBB is VPG Celtron’s version of the traditional design bending beam, packaged with a welded stainless steel bellow to provide additional environmental protection. This economical alternative to traditional designs is ideal for low-profile platform scales, packaging machinery, mechanical conversions or most any general weighing application. Complete with NTEP Certification, the HBB is available in capacities ranging from 10 kg to 250 kg and includes 10 ft (3.1 m) of load cell cable.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
385 (± 5) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.03%

Insulation Resistance:
5,000 megohms

Cable Length:
3.1 m (10 ft)

Cable Diameter:
0.200 polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal
Brown +Sense
Yellow –Sense

Warranty:
One-year limited warranty

Models

69323 Load Cell,SEB HBB-100kg 100kg Celtron 10ft 2mv/v 350 Ohm SST WS IP67
