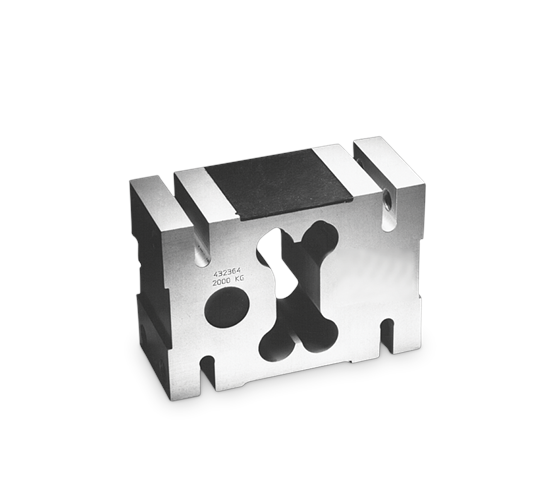

VPG Celtron HOC Aluminum, Single Point Load Cell

$0.00

This product is being discontinued, limited quantities available.
The HOC model is a high-capacity single point made of aluminum. Direct mounting of low-profile platforms simplifies the construction of floor scales, weigh bars and hanging scales. Capacities range from 750 kg to 2,000 kg (1,653.7 lb to 4,410 lb). Complete with 6 m (20 ft) of load cell cable.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
410 (± 10) ohm

Material/Finish:
Anodized aluminum

Temperature:
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Environmentally sealed, IP65

Safe Overload:
150% full scale

Rated Excitation:
5- 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohms

Cable Length:
6 m (20 ft)

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Max Platform Size:
4 ft x 4 ft (1.22 m x 1.22 m)

Warranty:
One-year limited warranty

Approvals:
cFMus

Models

42117 Load Cell,SPT HOC-750kg 6M Celtron 350 OHM AL FM
