VPG Celtron LOC Heavy Capactiy Aluminum, Single Point Load Cell

$0.00

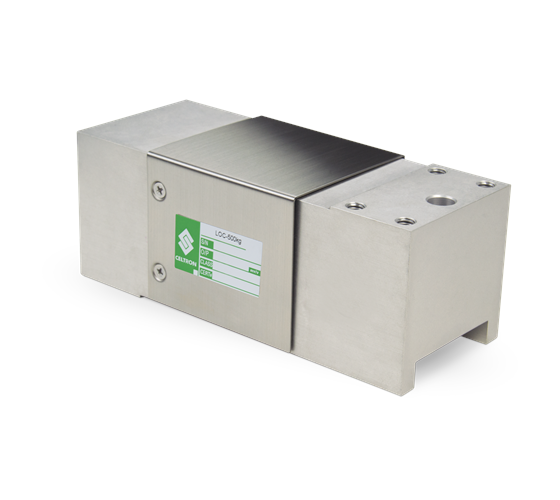

Low-profile, off-center loading load cell. Designed for direct mounting of a weighing platform and hanging scales. Long-term stability and durability are maintained. Capacities range from 100 kg to 500 kg (220.5 lb to 1,102.3 lb). Complete with 3.1 m (10ft) of load cell cable.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
410 (± 10) ohm

Material/Finish:
Aluminum

Temperature:
Compensated range
14°F to 104°F (-10°C to 40°C)
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Environmentally sealed, IP65

Safe Overload:
150% full scale

Rated Excitation:
5- 10 VDC (15 V maximum)

Combined Error:
0.025% full scale

Non-Repeatability:
0.02%

Insulation Resistance:
5,000 megohms

Cable Length:
3 m (9.8 ft)

Cable Diameter:
0.200 PVC jacket

Cable Color Code:
Red + Excitation
Black – Excitation
Green + Signal
White – Signal

Max Platform Size:
24 in x 24 in (610 mm x 610 mm)

Warranty:
One-year limited warranty

Approvals:
cFMus
NTEP

Models

39797 Load Cell,SPT LOC-100kg 100kg LE 3M Celtron 2mV/V 350 OHM WW Al NTEP III 5 S 4 Conductor Wire
39796 Load Cell,SPT LOC-150kg 150kg LE 3M Celtron 2mV/V 350 OHM WW Al NTEP III 5 S 4 Conductor Wire
39795 Load Cell,SPT LOC-250kg 250kg LE 3M Celtron 2mV/V 350 OHM WW Al NTEP III 5 S 4 Conductor Wire
39794 Load Cell,SPT LOC-300kg 300kg LE 3M Celtron 2mV/V 350 OHM WW Al NTEP III 5 S 4 Conductor Wire
39793 Load Cell,SPT LOC-500kg 500kg LE 3M Celtron 2mV/V 350 OHM WW Al NTEP III 5 S 4 Conductor Wire
