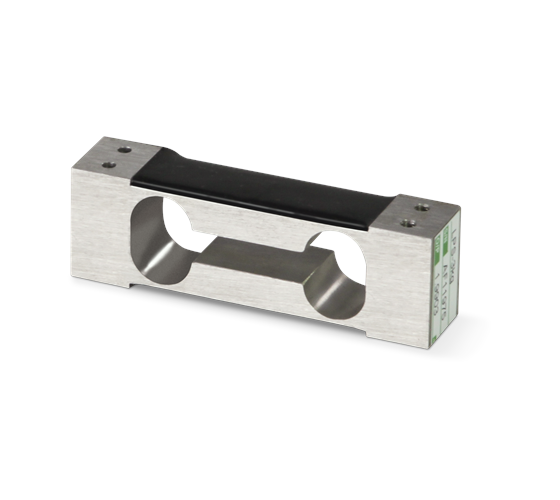

VPG Celtron LPS Aluminum, Single Point Load Cell

$0.00

Designed for counting and bench weighing applications. Capacities range from 3 kg to 100 kg (6.6 lb to 220.5 lb). Complete with 450 mm (17.8 in) of load cell cable..

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
410 (± 15) ohm

Material/Finish:
Aluminum

Temperature:
Compensated range
14°F to 104°F (-10°C to 40°C)
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Environmentally sealed, IP65

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.25% full scale

Non-Repeatability:
0.02%

Insulation Resistance:
5,000 megohms

Cable Length:
16.5 in; except 60 kg (14 in) and
100 kg (6 ft, 6 in)

Cable Diameter:
0.14 PVC jacket

Cable Color Code:
Red +Excitation
Blue –Excitation
Green +Signal
White –Signal

Max Platform Size:
13.75 in x 13.75 in

Warranty:
One-year limited warranty

Approvals:
cFMus
NTEP

Models

1. NTEP Certified
41822 Load Cell,SPT LPS-3kg Celtron 16.5in 2mV/V 350 OHM NTEP III 5 S FM Al
41823 Load Cell,SPT LPS-6kg Celtron 16.5in 2mV/V 350 OHM NTEP III 5 S FM Al
41824 Load Cell,SPT LPS-10kg Celtron 16.5in 2mV/V 350 OHM NTEP III 5 S FM Al
41825 Load Cell,SPT LPS-15kg Celtron 16.5in 2mV/V 350 OHM NTEP III 5 S FM Al
41826 Load Cell,SPT LPS-20kg Celtron 16.5in 2mV/V 350 OHM NTEP III 5 S FM Al
2. Non-NTEP Certified
30145 Load Cell,SPT LPS-10KG Celtron 16.5in 2mV/V 350 OHM Al
30146 Load Cell,SPT LPS-15KG Celtron 16.5in 2mV/V 350 OHM Al
30147 Load Cell,SPT LPS-20KG Celtron 16.5in 2mV/V 350 OHM Al
46502 Load Cell,SPT LPS-30kg Celtron 16.5in 2mV/V 350 Ohm Al
30148 Load Cell,SPT LPS-35KG Celtron 16.5in 2mV/V 350 OHM Al
41149 Load Cell,SPT LPS-60kg Celtron 14in 2mV/V 350 OHM Al
41150 Load Cell,SPT LPS-100kg Celtron 6.5FT 2mV/V 350 OHM Al
