VPG Celtron MDB Alloy Steel, Double-Ended Beam Load Cell

$0.00

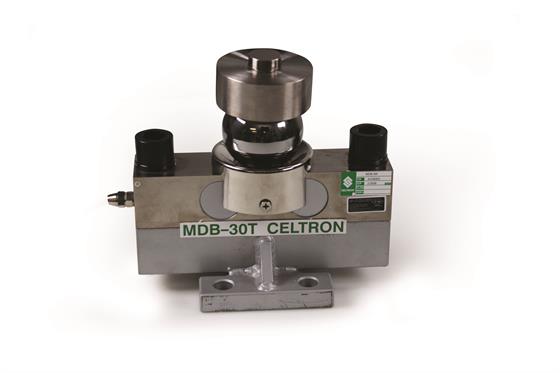

The Celtron MDB is a unique, compact style of load cell and mount assembly that is popular in many parts of the world for use in truck scales. The load cell is a double-ended shear beam for long life and includes ball and cups. Capacities range from 10t to 50t (9,071.8 kg to 45,359.2 kg) All capacities include cup and ball.

Download product PDF

Specifications

Full Scale Output:
2 mV/V

Output Resistance:
700 (± 5) ohm

Input Resistance:
770 (± 10) ohm

Material/Finish:
High alloy steel, nickel plated

Temperature:
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
50% full scale

Rated Excitation:
5-10 VDC (15 VDC max)

Nonlinearity:
0.030% full scale

Hysteresis:
0.030% full scale

Insulation Resistance:
5,000 megohms

Cable Length:
13.5 m (44.3 ft)

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited warranty

Approvals:
cFMus

Models

169240 Load Cell,DEB MDB-10t 10t 13.5m Alloy Steel 2mv/v 700/770 Ohm FM IP67 Celtron
169241 Load Cell,DEB MDB-20t 20t 13.5m Alloy Steel 2mv/v 700/770 Ohm FM IP67 Celtron
169242 Load Cell,DEB MDB-25t 25t 13.5m Alloy Steel 2mv/v 700/770 Ohm FM IP67 Celtron
169244 Load Cell,DEB MDB-40t 40t 13.5m Alloy Seel 2mv/v 700/770 Ohm FM IP67 Celtron
169245 Load Cell,DEB MDB-50t 50t 13.5m Alloy Steel 2mv/v 700/770 Ohm FM IP67 Celtron
