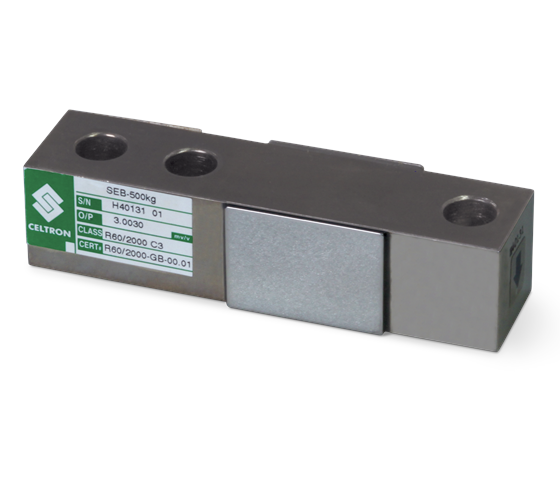

VPG Celtron SEB Alloy Steel, Single-Ended Beam Load Cell

$0.00

The VPG Celtron SEB is a single-ended beam designed for various scale and process weighing applications. This unit is manufactured from high-alloy steel that has been nickel plated to ensure an IP67 rating. The product is OIML approved and has metric envelope capacities ranging from 500 kg to 2.5 t. Each unit is provided with 20 ft (6.1 m) of standard load cell cable to deliver an accurate yet economical package.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
385 (± 5) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14° F to 104° F (-10° C to 40° C)
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5- 10 VAC/DC (15 V maximum)

Combined Error:
0.025%

Insulation Resistance:
5,000 megohms

Cable Length:
20 ft (6.1 m)

Cable Diameter:
0.200 polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited warranty

Approvals:
cFMus
OIML

Models

69315 Load Cell,SEB SEB-500kg-0 500kg Celtron 20ft 3mv/v 350 Ohm WW OIML C3 IP67
69316 Load Cell,SEB SEB-1t-O 1t Celtron 20ft 3mv/v 350 Ohm WW OIML C3 IP67
69317 Load Cell,SEB SEB-1.5t-O 1.5t Celtron 20ft 3mv/v 350 Ohm WW OIML C3 IP67
69318 Load Cell,SEB SEB-2t-O 2t Celtron 20ft 3mv/v 350 Ohm WW OIML C3 IP67
69319 Load Cell,SEB SEB-2.5t-O 2.5t Celtron 20ft 3mv/v 350 Ohm WW OIML C3 IP67
