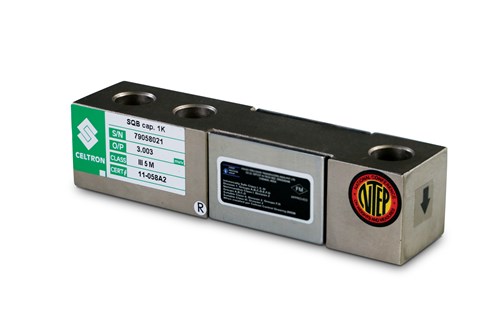

VPG Celtron SQB Alloy Steel, Single-Ended Beam Load Cell

Features

30106	Load Cell,SEB SQB-1K-N 1,000 lb 20ft Celtron 3mV/V 350 OHM WW NTEP III 5 M IP67
30109	Load Cell,SEB SQB-2K-N 2,000 lb 20ft Celtron 3mV/V 350 OHM WW NTEP III 5 M IP67
30112	Load Cell,SEB SQB-2.5K-N 2,500 lb 20ft 3mV/V 350 OHM WW NTEP III 5 M IP67
30113	Load Cell,SEB SQB-3K-N 3,000 lb 20ft Celtron 3mV/V 350 OHM WW NTEP III 5 M IP67
30270	Load Cell,SEB SQB-4K-N 4,000 lb 20ft Celtron 3MV/V 350 OHM WW NTEP III 5 M IP67
30114	Load Cell,SEB SQB-5KSE-N 5,000 lb 20ft Celtron 3mV/V 350 OHM WW NTEP III 5 M SE IP67
30115	Load Cell,SEB SQB-5K-N 5,000 lb 20ft Celtron 3mV/V 350 OHM WW NTEP III 5 M LE IP67
30117

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
385 (± 5) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
500 to 1,000 lb: 0.013 in
2,000 to 3,000 lb: 0.015 in
4,000 to 5,000 lb: 0.025 in
10,000 lb: 0.035 in

Cable Length:
20 ft

Cable Diameter:
0.200 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited

Approvals:
cFMus
NTEP
