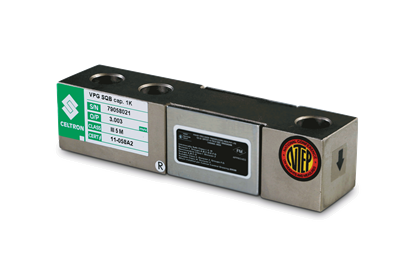

VPG Celtron SQB Alloy Steel, Single-Ended Shear Beam Load Cell

$0.00

The VPG Celtron SQB alloy steel, single-ended shear beam load cell is designed for low-profile scales and platform, hopper and tank weighing applications.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (? 3) ohm

Input Resistance:
385 (? 5) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14?F to 104?F (-10?C to 40?C)
Operating range
0? F to 150? F (-18? C to 65? C)

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5- 10 VDC (15 V maximum)

Combined Error:
0.02% Full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
500 lb-1,000 lb=0.013 in (3.1 mm)
2,000 lb-3,000 lb=0.015 in (0.4 mm)
4,000 lb-5,000 lb=0.025 in (0.6 mm)
10,000 lb=0.035 in (0.9 mm)

Seal Type:
Environmentally sealed, IP67

Cable Length:
20 ft (6.1 m)

Cable Diameter:
0.200 polyurethane jacket

Cable Color Code:
Red ……………………+ Excitation
Black ………………….? Excitation
Green ………………….+ Signal
White ………………….? Signal
Bare. ………………….Shield

Warranty:
One-year limited warranty

Approvals:
FM
NTEP
