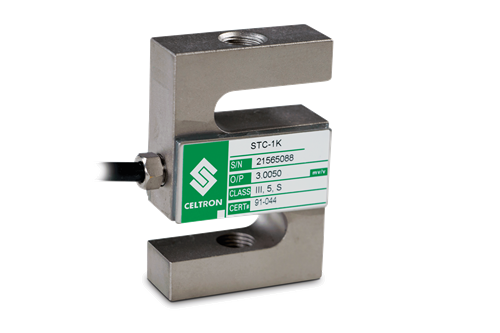

VPG Celtron STC Alloy Steel, S-Beam Load Cell

Nickel plated, alloy steel construction. Suited for batching, filling and hopper/tank weighing applications. Capacities range from 250 lb to 40,000 lb. Comes with 20 ft of load cell cable.

Category:

Features

30047 Load Cell,SBM STC-250 250 lb 20ft Celtron 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM

30051 Load Cell,SBM STC-500 500 lb 20ft Celtron 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM

30054 Load Cell,SBM STC-750 750 lb 20ft Celtron 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM

30067 Load Cell,SBM STC-1K 1,000 lb 20ft Celtron 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM

30069 Load Cell,SBM STC-1.5K 1,500 lb 20ft 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM

30072 Load Cell,SBM STC-2K 2,000 lb 20ft Celtron 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM

30073 Load Cell,SBM STC-2.5K 2,500 lb 20ft 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM

30074 Load Cell,SBM STC-3K 3,000 lb 20ft Celtron 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM

30076 Load Cell,SBM STC-5K 5,000 lb 20ft Celtron 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM

30077 Load Cell,SBM STC-10K 10,000 lb 20ft Celtron 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM

30078 Load Cell,SBM STC-15K 15,000 lb 20ft Celtron 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM

30079 Load Cell,SBM STC-20K 20,000 lb 20ft Celtron 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM

Specifications

Full Scale Output:
3.0 mV/V nominal

Output Resistance:
350 (± 3) ohm

Input Resistance:
385 (± 5) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

 Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Non-Repeatability:
0.01% full scale

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
20 ft

 Cable Diameter:
250 to 20,000 lb: 0.200 in
40,000 lb: 0.305 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited

Approvals:
cFMus
NTEP
