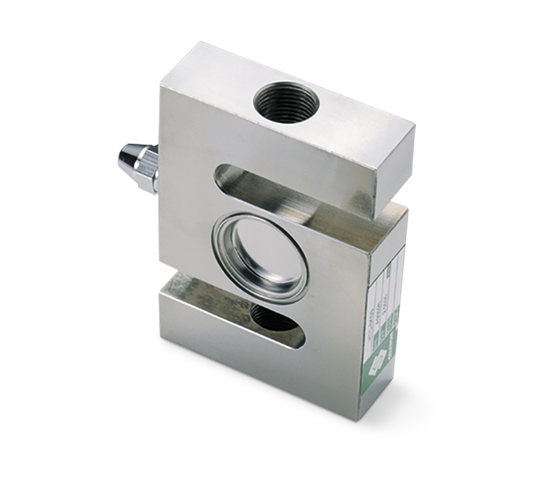

Name: VPG Celtron STC HSS Stainless Steel, S-Beam Load Cell
SKU: 2136
Availability: InStock

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (? 3) ohm

Input Resistance:
385 (? 5) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0? F to 150? F (-18? C to 65? C)

Safe Overload:
150% full scale

Rated Excitation:
5- 10 VDC (15 V maximum)

Combined Error:
0.05%

Insulation Resistance:
5,000 megohms

Seal Type:
Welded-seal, IP67

Cable Length:
20 ft (6.1 m)

Cable Diameter:
0.200 polyurethane jacket

Cable Color Code:
Red ………………….+ Excitation
Black ………………..? Excitation
Green ……………….+ Signal
White ………………..? Signal
Bare………………….Shield

Warranty:
One-year limited warranty

Models

69326	Load Cell,SBM STC-500HSS 500lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67
69327	Load Cell,SBM STC-750HSS 750lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67
69328	Load Cell,SBM STC-1KHSS 1,000lb Celtron 20ft 2mV/V 350 OHM WW SST HD IP67
69329	Load Cell,SBM STC-1.5KHSS 1,500lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67
69330	Load Cell,SBM STC-2KHSS 2,000lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67
69331	Load Cell,SBM STC-2.5KHSS 2,500lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67
69332	Load Cell,SBM STC-3KHSS 3,000lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67
69333	Load Cell,SBM STC-5KHSS 5,000lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67
69334	Load Cell,SBM STC-10KHSS 10,000lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67
