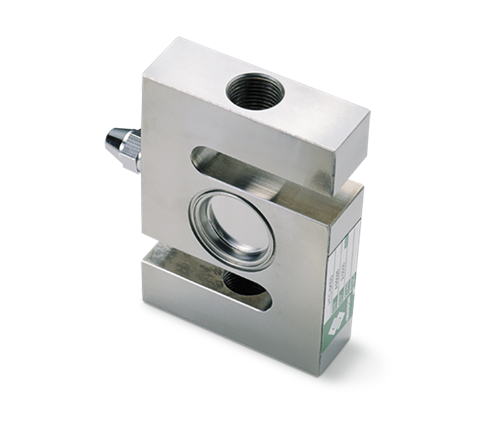

VPG Celtron STC-HSS Stainless Steel, S-Beam Load Cell

Features upgraded protection to the standard environmentally sealed S-beam. Ideal for dry, dirty suspended tank, hopper and mechanical replacement applications. Provides a mid-range solution. Available in capacities ranging from 500 lb to 10,000 lb. Each unit includes 20 ft of standard load cell cable.

Category:

Features

69326 Load Cell,SBM STC-500HSS 500lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67

69327 Load Cell,SBM STC-750HSS 750lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67

69328 Load Cell,SBM STC-1KHSS 1,000lb Celtron 20ft 2mV/V 350 OHM WW SST HD IP67

69329 Load Cell,SBM STC-1.5KHSS 1,500lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67

69330 Load Cell,SBM STC-2KHSS 2,000lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67

69331 Load Cell,SBM STC-2.5KHSS 2,500lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67

69332 Load Cell,SBM STC-3KHSS 3,000lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67

69333 Load Cell,SBM STC-5KHSS 5,000lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67

69334 Load Cell,SBM STC-10KHSS 10,000lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
385 (± 5) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

 Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.05%

Insulation Resistance:
5,000 megohm

 Cable Length:
20 ft

Cable Diameter:
0.200 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited
