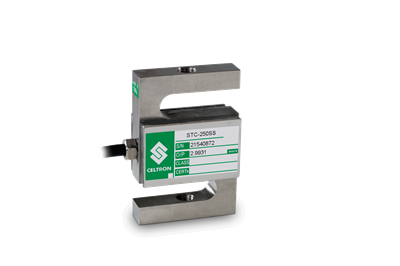

VPG Celtron STC SS Stainless Steel, S-Beam Load Cell

$0.00

The Vishay Celtron STC stainless steel, S-beam load cell is ideal for tension applications with capacities ranging from 200 pounds to 10,000 pounds (90.7 kilograms to 4,535.9 kilograms).

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V nominal

Output Resistance:
350 (? 3) ohm

Input Resistance:
385 (? 5) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0? F to 150? F (-18? C to 65? C)

Safe Overload:
150% full scale

Rated Excitation:
5- 10 VDC (15 V maximum)

Nonlinearity:
0.03% full scale

Hysteresis:
0.02% full scale

Insulation Resistance:
5,000 megohms

Seal Type:
Environmentally sealed, IP67

Cable Length:
20 ft (6.1 m)

Cable Diameter:
0.200 polyurethane jacket

Cable Color Code:
Red ………………….+ Excitation
Black ………………..? Excitation
Green ……………….+ Signal
White ………………..? Signal
Bare…………………..Shield

Warranty:
One-year limited warranty

Approvals:
FM

Models

46659 Load Cell,SBM STCSS-250lb 20ft Celtron 3mV/V 350 Ohm WW FM IP67
46661 Load Cell,SBM STCSS-500lb 20ft Celtron 3mV/V 350 Ohm FM WW SST IP67
46662 Load Cell,SBM STCSS-750lb Celtron 20ft 3mV/V 350Ohm FM WW SST IP67
46663 Load Cell,SBM STCSS-1K 1000lb Celtron 20ft 3mV/V 350 Ohm FM WW SST IP67
46664 Load Cell,SBM STCSS-1.5K 1500lb 20ft Celtron 3mV/V 350 Ohm FM WW SST IP67
46665 Load Cell,SBM STCSS-2K 20ft Celtron 3mV/V 350 Ohm FM WW SST IP67
46666 Load Cell,SBM STCSS-2.5K 2500lb 20ft Celtron 3mV/V 350 Ohm FM WW SST IP67
46667 Load Cell,SBM STCSS-3K 3000lb 20ft Celtron 3mV/V 350 Ohm FM WW SST IP67
46668 Load Cell,SBM STCSS-5K 5000lb 20ft Celtron 3mV/V 350 Ohm FM WW SST IP67
46669 Load Cell,SBM STCSS-10K 10000lb 20ft Celtron 3mV/V FM WW SST IP67
