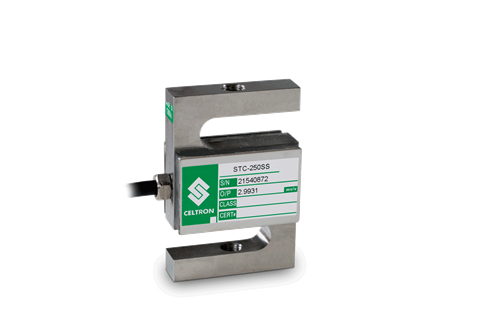

VPG Celtron STC SS Stainless Steel, S-Beam Load Cell

Features

46659	Load Cell,SBM STCSS-250lb 20ft Celtron 3mV/V 350 Ohm WW FM IP67
46661	Load Cell,SBM STCSS-500lb 20ft Celtron 3mV/V 350 Ohm FM WW SST IP67
46662	Load Cell,SBM STCSS-750lb Celtron 20ft 3mV/V 350Ohm FM WW SST IP67
46663	Load Cell,SBM STCSS-1K 1000lb Celtron 20ft 3mV/V 350 Ohm FM WW SST IP67
46664	Load Cell,SBM STCSS-1.5K 1500lb 20ft Celtron 3mV/V 350 Ohm FM WW SST IP67
46665	Load Cell,SBM STCSS-2K 20ft Celtron 3mV/V 350 Ohm FM WW SST IP67
46666	Load Cell,SBM STCSS-2.5K 2500lb 20ft Celtron 3mV/V 350 Ohm FM WW SST IP67
46667	Load Cell,SBM STCSS-3K 3000lb 20ft Celtron 3mV/V 350 Ohm FM WW SST IP67
46668	Load Cell,SBM STCSS-5K 5000lb 20ft Celtron 3mV/V 350 Ohm FM WW SST IP67
46669	Load Cell,SBM STCSS-10K 10000lb 20ft Celtron 3mV/V FM WW SST IP67

Full Scale Output:
3.0 mV/V nominal

Output Resistance:
350 (± 3) ohm

Input Resistance:
385 (± 5) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Nonlinearity:
0.03% full scale

Hysteresis:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
20 ft

Cable Diameter:
0.200 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited

Approvals:
cFMus
