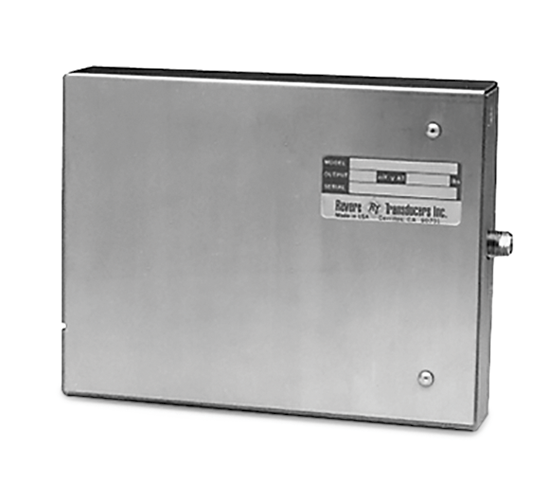

VPG Revere 462 Alloy Steel, Single Point Load Cell

$0.00

Very high-performance single-point cell designed for high-precision counter scales. Negligible error from off-center loading. Resistant to severe impact loading. Good water resistance. Capacities range from 2 lb to 250 lb (0.9 kg to 113.4 kg). Complete with 10 ft (3.1 m) of load cell cable.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3.5) ohm

Input Resistance:
390 (± 15) ohm

Material/Finish:
Alloy steel with stainless steel cover

Temperature:
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC nominal (15 V maximum)

Combined Error:
0.03% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
2 lb-20 lb=0.06 in (1.5 mm)
50 lb-250 lb=0.04 in (1.0 mm)

Cable Length:
10 ft (3.1 m)

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited warranty

Approvals:
cFMus

Models

17442 Load Cell,SPT 462-D3-2- 10P1 2lb 10ft 2mv/v 350 Ohm FM WW IP67 RTI
17443 Load Cell,SPT 462-D3-5- 10P1 5lb 10ft 2mv/v 350 Ohm FM WW IP67 RTI
17444 Load Cell,SPT 462-D3-10- 10P1 10lb 10ft 2mv/v 350 Ohm FM WW IP67 RTI
17445 Load Cell,SPT 462-D3-20- 10P1 20lb 10ft 2mv/v 350 Ohm FM WW IP67 RTI
17446 Load Cell,SPT 462-D3-50- 10P1 50lb 10ft 2mv/v 350 Ohm FM WW IP67 RTI
17447 Load Cell,SPT 462-D3-100- 10P1 100lb 10ft 2mv/v 350 Ohm FM WW IP67 RTI
17448 Load Cell,SPT 462-D3-250- 10P1 250lb 10ft 2mv/v 350 Ohm FM WW IP67 RTI
